Description

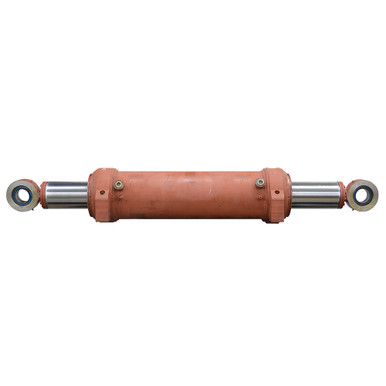

7.875″(200mm) x 15.43″(392mm) x 5.5″(140mm) DOUBLE ACTING HYDRAULIC STEERING CYLINDER
Unused old inventory. TEREX double acting hydraulic steering cylinder. Cylinder has M8-1.25 bleeder port at each end. Numbers on cylinder T5446808.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 7.875″(200mm) x 15.43″(392mm)
- Barrel Thickness 0.875″
- Gland Retainer Threaded in
- Pressure 3000 PSI
- Rod Dia. 5.5″(140mm)
|
- Ports 3/4″ NPT
- Retracted Length 67.875″
- Gland Face to Rod Pin Center 6.56″
- Shpg. 1090 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 2.36″
- Pin-Center-To-Swivel Eye-End 3.04″
- Swivel Eye Width 1.93″
- Pin Hole 2.76″(70mm)
|
- Rod End Swivel Eye
- Width 2.36″
- Pin-Center-To-Swivel Eye-End 3.13″
- Swivel Eye Width 1.93″
- Pin Hole 2.76″(70mm)
|
| FLANGE MOUNT |
- Flange Mount Four M27-2.0 x 120mm tapped holes on 33.06″ x 11″ bolt centers
|
