Description

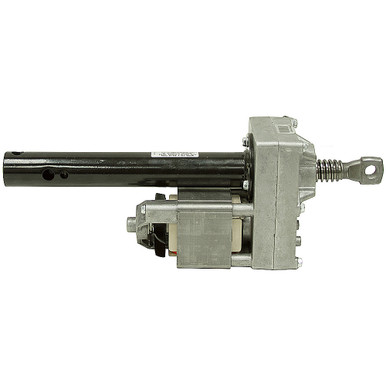

7″ STROKE 900LB PUSH 240 VAC LINEAR ACTUATOR
New, Icon Health and Fitness model 311096 linear actuator. Power extend and power retract. Rated to push up to 900 pounds, retract under no load. Thermal overload protection. Shaded pole motor with open construction and external fan. Hall-effect sensor connected to internal gearing allows for use with position-sensing circuits.
SPECIFICATIONS
- Voltage 240 VAC, 50 Hz
- Amperage 0.70 Amps
- Capacity Rated to Push 900 lb.
- RPM 24 RPM
- Thread 3/4″-6 Acme Thread
- Stroke 7″
- Limit Switches No Limit Switches
- Direction Reversible
- Duty Intermittent
- Retracted length 10″
- Pin Holes 3/8″
- Size 10-7/8″ x 3-1/4″ x 4-1/4″
- Shpg. 7 lbs.
