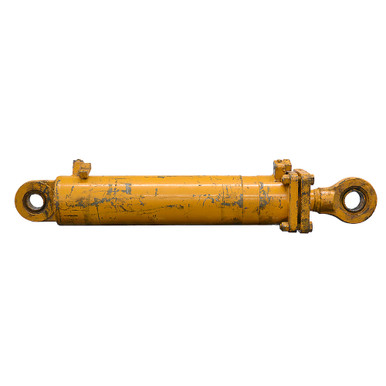

7" x 28.75" x 3.5" Double Acting Hydraulic Cylinder

7″ x 28.75″ x 3.5″ Double Acting Hydraulic Cylinder

Original price was: $995.95.Current price is: $199.19.

SKU: 904563 Category:

Description

7″ x 28.75″ x 3.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 7″ x 28.75″
  • Barrel Thickness 0.509″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.5″
  • Ports 4 bolt 3/4″ code 61 flange size 12
  • Retracted Length 50.75″
  • Gland Face to Rod Pin Center 7.5″
  • Shpg. 459 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Thickness, Max 2.78″
  • Pin-Center-To-Swivel Eye-End 3.67″
  • Swivel Eye Width 2.625″
  • Pin Hole 3″
  • Base End Swivel Eye
  • Thickness, Max 2.36″
  • Pin-Center-To-Swivel Eye-End 3.29″
  • Swivel Eye Width 2.25″
  • Pin Hole 2-1/2″
