7" x 52.5" x 3" Double Acting Hydraulic Cylinder

7″ x 52.5″ x 3″ Double Acting Hydraulic Cylinder

Original price was: $849.95.Current price is: $169.99.

SKU: 902572 Category:

Description

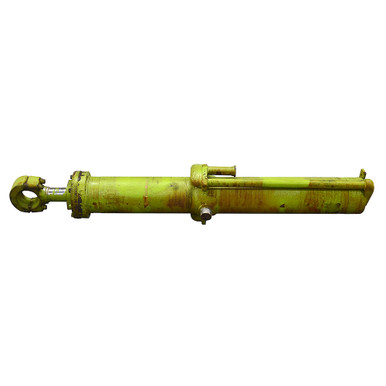

7″ x 52.5″ x 3″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 7″ x 52.5″
  • Barrel Thickness 0.331″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI max.
  • Rod Dia. 3″
  • Ports 1.75″ tube O.D. and ORFS 2.375″ split flange O.D.
  • Retracted Length 37″
  • Gland Face to Rod Pin Center 8.25″
  • Shpg. 466 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 3.72″
  • Pin-Center-To-Tang-End 3.78″
  • Pin Hole 3.546″(90mm)
  • Base End Male Trunnion
  • Pin Outside/Inside Width 12.5″ / 9″
  • Pin-Center-To-Rod Pin Center 37″
  • Pin Center To Base End 33.5″
  • Pin Diameter 2.25″
