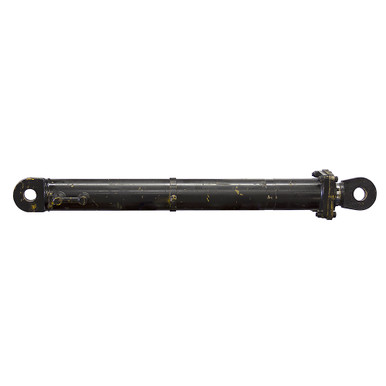

7" x 53" x 5.5" Double Acting Hydraulic Cylinder Ward Co F94568.X 4000 4 1671 09 Leaky Piston

7″ x 53″ x 5.5″ Double Acting Hydraulic Cylinder Ward Co F94568.X 4000 4 1671 09 Leaky Piston

Original price was: $889.95.Current price is: $177.99.

SKU: 902527 Category:

Description

7″ x 53″ x 5.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused, old inventory. Piston seals leak, sold as-is. WARD CO. model F94568.X welded cylinder with bolt-on gland cap. External valving at rod and base ends to cushion extend and retract strokes, respectively. Retract port flange has non-threaded mounting holes.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 7″ x 53″
  • Barrel Thickness 3/8″
  • Pressure 2000 PSI max.
  • Rod Dia. 5-1/2″, Hollow
  • Rod Thickness 5/8″
  • Extend Port 1-1/2″ Four-Bolt Flange, Code 61
  • Retract Port 1″ Four-Bolt Flange, Code 61
  • Retracted Length 78-1/2″
  • Shpg. 700 lbs.
END MOUNTINGS
  • Rod End Tang
  • Max Thickness 2-1/2″
  • Pin Center to Tang End 4-1/16″
  • Pin Hole 3-1/4″
  • Base End Tang
  • Max Thickness 2-1/4″
  • Pin Center to Tang End 4″
  • Pin Hole 3″
