Description

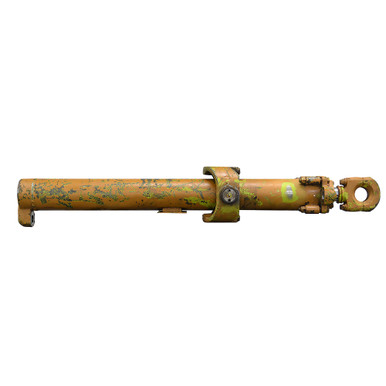

7″ x 63.25″ x 3.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Paint on cylinder is very chipped. Numbers on cylinder 9061900C KLB7926F
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 7″ x 63.25″
- Barrel Thickness 0.383″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI
- Rod Dia. 3.5″
|
- Ports 4 bolt 2″ code 61 flange size 32
- Retracted Length 33″ trunnion
- Gland Face to Rod Pin Center 7″
- Shpg. 785 lbs.
|
| END MOUNTINGS |
- Rod End Female Ball Receiver
- Thickness, Max 4.04″
- Ball-Center-To-Swivel Eye-End 4.375″
- Pin Hole 4″
|
- Base End Male Trunnion
- Pin Outside/Inside Width 19.75″ / 15.75″
- Pin-Center-To-Ball Center 33″
- Pin Center To Base End 50″
- Pin Diameter 3-1/2″
|
