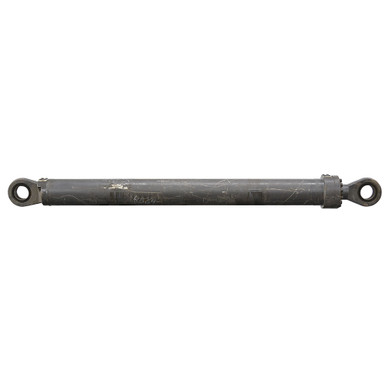

Name: 7"(177.8mm) x 74.75"(1898.7mm) x 4.918"(125mm) Double Acting Hydraulic Cylinder 14257000.05H118
Brand: industrialgeardepot.com
SKU: 904394
Price: 309.99 USD
Availability: InStock

7″(177.8mm) x 74.75″(1898.7mm) x 4.918″(125mm) Double Acting Hydraulic Cylinder 14257000.05H118

SKU: 904394 Category: hot sale

Description

7″(177.8mm) x 74.75″(1898.7mm) x 4.92″(125mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 14257000.05H118

SPECIFICATIONS
Double Acting Bore x Stroke 7″(177.8mm) x 74.75″(1898.7mm) Barrel Thickness 0.622″ Gland Retainer Bolt on gland Pressure 3000 PSI Rod Dia. 4.92″(125mm)	Ports 4 bolt 1-1/4″ code 62 flange size 20 Retracted Length 106.5″ Gland Face to Rod Pin Center 8.25″ Shpg. 1127 lbs.
END MOUNTINGS
Rod End Swivel Eye Thickness, Max 2.91″ Pin-Center-To-Swivel Eye-End 4.39″ Swivel Eye Width 2.75″ Pin Hole 4.33″(110mm)	Base End Swivel Eye Thickness, Max 2.91″ Pin-Center-To-Swivel Eye-End 4.43″ Swivel Eye Width 2.75″ Pin Hole 4.33″(110mm)
