Description

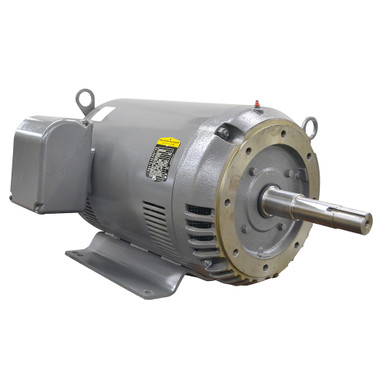

75 HP 2940 RPM 220/380 VOLT AC 3 PHASE BALDOR MOTOR
New, Baldor model M15913DB.
SPECIFICATIONS
- Brand Baldor
- Model Number M15913DB
- Power 75 HP
- Voltage 220/380 Volt AC
- Phase 3
- Frequency 50 Hz
- Amperage 171/99 Amps
- Speed 2940 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearing Ball
- Enclosure ODP
- Duty Continuous
- Frame 364JP
- Face Mount Four 5/8″-11 tapped holes on 11″ diameter bolt circle
- Rigid Base Mount Four 0.66″ dia. holes on 11″ x 11-1/4″ centers
- Shaft 1-3/4″ dia. x 3-1/2″ stepped down to 1-5/8″ dia. x 2-1/4″ w/ 3/8″ keyway and tapped for 1/2″-13 x 2″
- Size 31.25″ x 21″ x 16.5″
- Shpg. 596 lbs.
