Sale!
8.5" x 33.625" x 3.5" Double Acting Hydraulic Cylinder 2113327

8.5″ x 33.625″ x 3.5″ Double Acting Hydraulic Cylinder 2113327

Original price was: $995.95.Current price is: $199.19.

SKU: 902539 Category:

Description

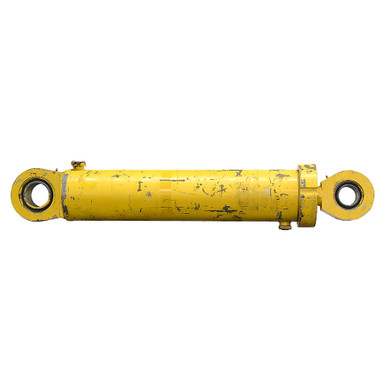

8.5″ x 33.625″ x 3.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Model 2113327

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 8.5″ x 33.625″
  • Barrel Thickness 0.558″
  • Gland Retainer Externally threaded gland cap
  • Pressure 3000 PSI max.
  • Rod Dia. 3.5″
  • Ports 4 bolt 1-1/4″ code 61 flange size 20
  • Retracted Length 57.5″
  • Shpg. 671 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Thickness, Max 3.48″
  • Pin-Center-To-Tang-End 4.59″
  • Thru-hole Width 3.06″
  • Pin Hole 3-1/2″
  • Base End Swivel Eye
  • Thickness, Max 3.99″
  • Pin-Center-To-Tang-End 5.04″
  • Thru-hole Width 3.94″
  • Pin Hole 4-1/2″
