8.75" x 34.5" Single Acting Two-Stage Telescoping Hydraulic Cylinder

8.75″ x 34.5″ Single Acting Two-Stage Telescoping Hydraulic Cylinder

Original price was: $795.95.Current price is: $159.19.

SKU: 902226 Category:

Description

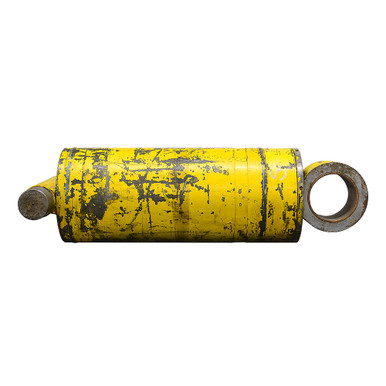

8.75″ x 34.5″ SINGLE-ACTING TELESCOPING CYLINDER
Unused old inventory. Single acting three stage, telescoping hydraulic cylinder. Numbers on cylinder 0-017167-00.

SPECIFICATIONS
  • Single Acting
  • Main Cyl Bore x Total Stroke 8.75″ x 34.5″
  • Thickness 0.625″
  • Number of Stages 3
  • Pressure 2000
  • Rod Dia. 6″
  • Ports SAE 12
  • Retracted Length 29.75″
  • Shpg. 566 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 4″
  • Pin-Center-To-Tang-End 3.61″
  • Pin Hole 4-3/4″
  • Base End Male Trunnion
  • Pin Outside/Inside Width 14.75″ / 10.25″
  • Pin-Center-To-Rod Pin Center 29.75″
  • Pin Center To Base End 1.625″
  • Pin Diameter 3″
