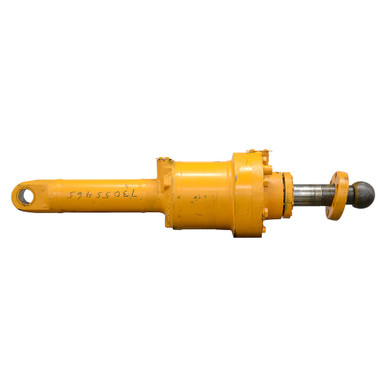

8″ x 4.5″ x 3″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 73055465.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 8″ x 4.5″
- Barrel Thickness 0.562″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 3″
|
- Ports 4 bolt 3/4″ code 61 flange size 12
- Retracted Length 44.75″ from pin center to ball end
- Gland Face to Rod Pin Center 9.25″
- Shpg. 355 lbs.
|
| END MOUNTINGS |
- Rod End Ball
- Ball O.D. 3.725″
- Flange 6.645″ x 1.354″ w/ six 0.938″ bolt holes on 2.485″ centers and 4.97″ bolt circle
|
- Base End Tang
- Width 2.99″
- Pin-Center-To-Tang-End
- Pin Hole 1.97″(50mm)
|
