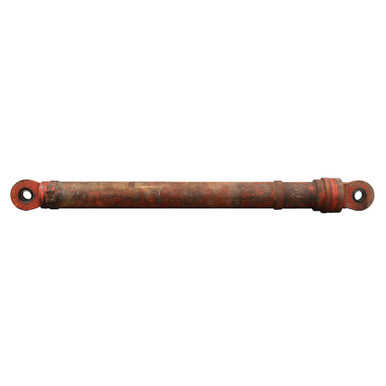

8" x 72" x 4.5" Double Acting Hydraulic Cylinder Iowa Industrial Hydraulics 20V554 P-2205-003

8″ x 72″ x 4.5″ Double Acting Hydraulic Cylinder Iowa Industrial Hydraulics 20V554 P-2205-003

Original price was: $1,549.95.Current price is: $309.99.

SKU: 904379 Category:

Description

8″ x 72″ x 4.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has rubber disc that is 12″ O.D. x 2-1/8″ thick placed between gland face and metal disc 11-3/4″ O.D. x 2-1/8″ thick bolted to gland face to absorb shock on retract stroke. Iowa Industrial Hydraulics numbers on cylinder 20V554 P-2205-003

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 8″ x 72″
  • Barrel Thickness 0.5″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI max.
  • Rod Dia. 3″
  • Ports 4 bolt flange 1-1/2″ code 61 flange size 24
  • Retracted Length 111.75″
  • Gland Face to Rod Pin Center 6.5″
  • Shpg. 1300 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Thickness, Max 2.75″
  • Pin-Center-To-Swivel Eye-End 5.30″
  • Swivel Eye Width 2.84″
  • Pin Hole 3-1/4″
  • Base End Swivel Eye
  • Thickness, Max 2.75″
  • Pin-Center-To-Swivel Eye-End 5.33″
  • Swivel Eye Width 2.84″
  • Pin Hole 3-1/4″
