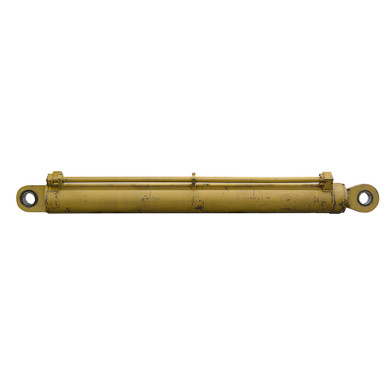

8" x 75" x 4.5" Double Acting Hydraulic Cylinder Seitz 921475 185677

8″ x 75″ x 4.5″ Double Acting Hydraulic Cylinder Seitz 921475 185677

Original price was: $1,349.95.Current price is: $269.99.

SKU: 904377 Category:

Description

8″ x 75″ x 4.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Seitz numbers on cylinder 921475 185677. (Cylinder has bad rod seals. Sold as is).

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 8″ x 75″
  • Barrel Thickness 0.529″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI
  • Rod Dia. 4.5″
  • Ports 4 bolt 1-1/2″ code 61 flange size 24
  • Retracted Length 100.5″
  • Gland Face to Rod Pin Center 6.25″
  • Shpg. 1062 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Thickness, Max 3″
  • Pin-Center-To-Swivel Eye-End 4.375″
  • Swivel Eye Width 3.06″
  • Pin Hole 3-1/2″
  • Base End Swivel Eye
  • Thickness, Max 3″
  • Pin-Center-To-Swivel Eye-End 4.03″
  • Swivel Eye Width 3.08″
  • Pin Hole 3-1/2″
