Description
Specifications

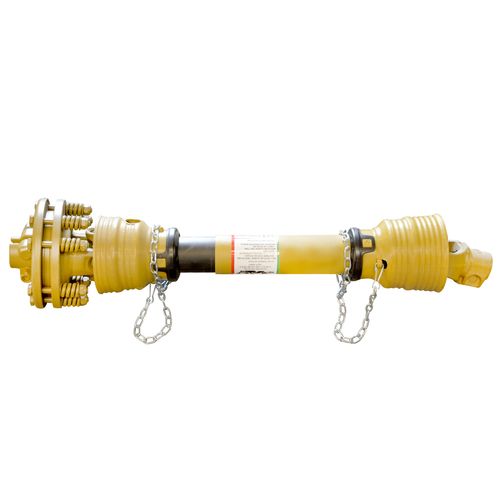

- Made by Eurocardan
- PTO Shaft Series 4
- PTO Shaft can be used on Small Tillers
- Implement End: FD1 Slip Clutch w/1-3/8″-6 Spline
- Tractor End: 1-3/8″-6 Spline
- 20.7″ Cross-to-Cross measurement closed
- Closed length: 28.7″
- 35 HP at 540 RPM
- 54 HP at 1000 RPM
- Safe extended length: 34.6″
Slip Clutch Implement End Yoke
| Assembly Description | Series Size | Length Overall | I.E. = Implement EndT.E. = Tractor End |
|---|---|---|---|
| AX4480FD1A-SC/QR | 4 | 28.7″ | FD1 slip clutch 1 3/8-6 I.E. / 1 3/8-6 QR yoke T.E. |
