Description

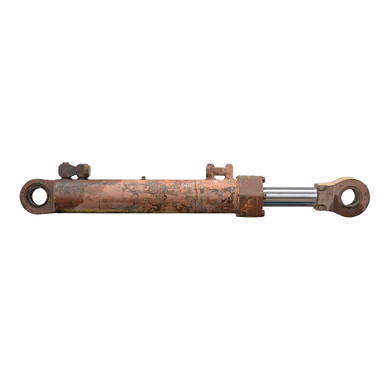

9.5″ x 44.25″ x 6.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Rod seals leak and paint is badly chipping. Numbers on cylinder U288E2528
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 9.5″ x 44.25″
- Barrel Thickness 0.696″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI
- Rod Dia. 6.5″
|
- Ports 4 bolt 1-1/2″ code 62 flange size 24
- Retracted Length 104.5″
- Gland Face to Rod Pin Center 28″
- Shpg. 1861 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Thickness, Max 5″
- Pin-Center-To-Swivel Eye-End 6.41″
- Swivel Eye Width 4.55″
- Pin Hole 5-1/2″
|
- Base End Swivel Eye
- Thickness, Max 5.18″
- Pin-Center-To-Swivel Eye-End 5.875″
- Swivel Eye Width 4.56″
- Pin Hole 5-1/2″
|
