Description

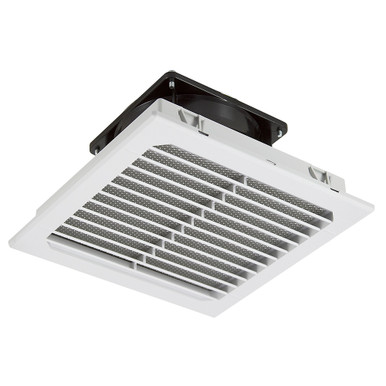

9″ GRILL 70 CFM 230 VAC FILTER FAN
New, Pentair fresh air enclosure filter fan model SF0926514.High airflow and low noise for cooling electrical equipment or general air circulation. Grey plastic grill. Air is pulled through the plastic grill and filter. Metal housing with plastic blades. Click-fit design installs into enclosure wall. Snap over grill with paper filter. 51db rating.Terminal block electrical connection.
SPECIFICATIONS
- Pull Type Fan
- Model NumberSF0926514
- Flow70 CFM max.
- Voltage 230 AC
- Amperage0.11 Amps
- Power20 Watts
- Speed 3100 RPM
- Operating Temperature Range Min. 14° F to Max. 131° F
- IP Rating 55
- Mount 8 holes on 3-5/8″ to 7-1/4″ x 3-5/8″ to 7-1/4″ centers
- Cutout Dimensions 6.97″ x 6.97″
- Blade Dia.4-5/16″
- Number of Blades5
- Size8-1/16″ x 8-1/16″ x 3-9/16″
- Shpg. 4 lbs.
