Description
CLUTCH BRAKE

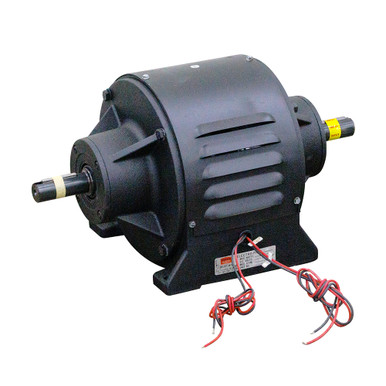

New, Warner Electric EP-825 5231-273-002 electro pack. Rugged, pre-assembled clutch and brake combinations in an enclosed, foot mounted housing. Factory aligned, pre-assembled and have been designed to mate easily with industry standard motors and reducers with v-belts, pulleys, chain and sprockets, in line couplings and timing belt drives.
SPECIFICATIONS
- Brand Warner Electric
- Model EP-825
- Series EP
- Part Number 5231-273-002
- Max RPM 3600
- Voltage 90 Volt DC
- Horsepower @ 1800 RPM 7-1/2
- Static Torque Brake (ft-lb) 125 (ft-lb)
- Static Torque Clutch 125 (ft-lb)
- Input/Output Shaft Size 1.125″ w/ 0.25″ sq. Key
- Mount Four 0.406″ dia. holes on 8.5″ x 8.5″ centers
- Size 20-1/32″ x 11-39/64″ x 10-13/16″
- Shpg 176 lbs.
