Description
Specifications
- made by Eurocardan

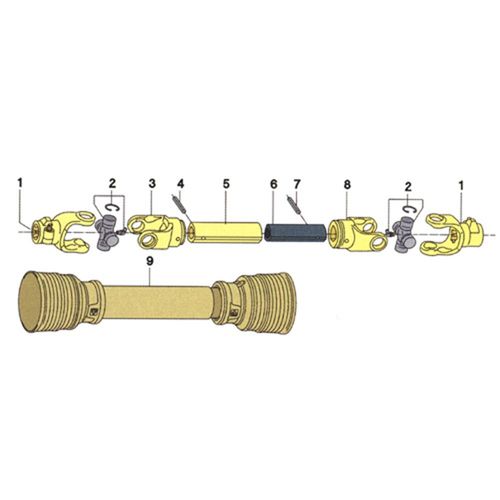

- AX 6 series pto shaft
- Closed length: 39.6″
- Safe extended length: 51″
- 62 HP at 540 RPM
- 98 HP at 1000 RPM
- 710mm or 28″ length from a closed position from universal joint to universal joint
- tractor end is a 1 3/8 x 6 spline
- the implement end is on a FD4 slip clutch with a 1 3/8 x 6 spline
- can be used on rototillers
Slip Clutch Implement End Yoke
| Assembly Description | Series Size | Length Overall | I.E. = Implement EndT.E. = Tractor End |
|---|---|---|---|
| AX6710FD4A-HDSC/MC | 6 | 39.5″ | FD4 slip clutch 1 3/8-6 I.E. / 1 3/8-6 MC yoke T.E. |
