Description
Total Only

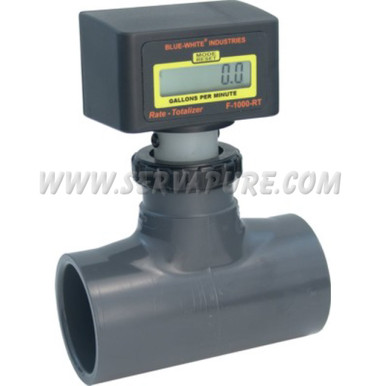

Solvent Weld PVC Tee Body
F-1000 Features
– Easy-to-read 6-digit LCD with up to 4 decimal positions
– Tamper-proof design
– Battery Operated (2 AAA batteries included)
– Three Model Variations
– RB = Rate Only
– TB = Total Only
– RT = Rate & Totalizer
– Total reset function can be disabled
– Display update time: Rate: 1.5 sec., Total 0.5 sec.
– Factory calibrated – no programming required
– Custom calibration units available
– Weather resistant ABS enclosure, NEMA 4X
– LCD not recommended for direct sunlight applications
F-1000 Specifications
| Pipe size | 3″ IPS Pipe Size |
| Low Flow Reading | 230 LPM |
| High Flow Reading |
2300 LPM |
| Max Working Pressure |
200 PSI (20 bar) @ 70°F (21°C) |
| Max Fluid Temperature |
140°F (60°C) @ 0 PSI |
| Full Scale Accuracy | ±2% |
| Meter Body Material |
PVC |
| Sensor/Paddle/Axle Material |
PVDF |
| O-Ring Seals |
Viton |
| Max Pressure Drop |
0 PSI (no significant pressure drop) |
| Approx. Ship Weight |
2 lb (0.91 kg) |
| Dimensions |
4″ x 6″ |
Maximum continuous flow should not occur in the upper 25% of the flow range.
