Description

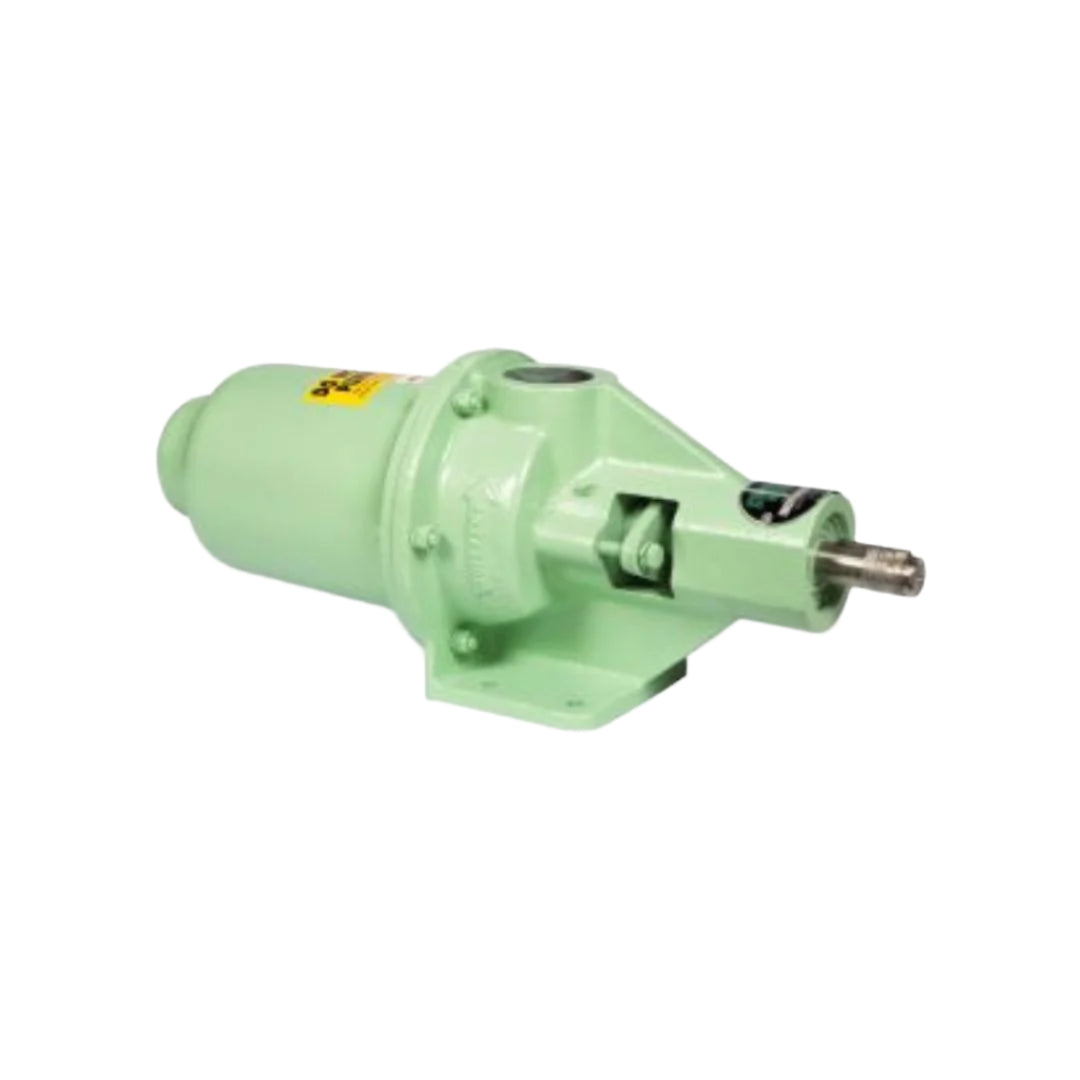

Continental CPD22 Progressive Cavity Pump
The CP Model, also known as a bare shaft pump, operates with low costs and are compact making them ideal for light duty use. This model is available with horizontal or vertical suction.
The CPD Model has a packed seal for its sealing option.
Rapid deterioration of the stator can happen as a result of the pump operating without fluid. DO NOT RUN DRY.
Features:
- Only One Moving Part
- Low Cost
- Compact
- Small Mounting “Foot Print”
- Light Duty Applications
- Various Motor and Drive Combinations
Specifications:
- Pump Frame Size: CP22
- Outlet Discharge Size: 3/4 in. NPT
- Inlet Suction Size: 3/4 in. NPT
- Body Casting Material Options Cast Iron, Stainless Steel
- Pump Rotor Material: Chrome Plated Stainless Steel
- Stator Material Options: Buna Nitrile, Viton, EPDM
- Seal Material Options: Packing
- Flowrate: .4 – 4.9 GPM
- Pressure: 0 – 100 PSI
- Weights: 15 lbs
Resources:
Continental Pump Guide
CPD Pump Assembly
CP Pump Performance Data
CP22 Pump Curves
