Description
Specifications:- 10″ 2-222 o-ring seal- Inlet/Outlet: 3/4″- Cartridge length: 2-222/Fin or flat 10″- Cartridge diameter: 2-1/2″- Total Length: 15″- Maximum Pressure: 125 psi- Max Operating Temp: 125 °F (52°C)- Housing: 100% Natural Polypropylene- O-Ring: Viton, EP, Silicone, or Teflon Encapsulated Viton
Note: Accessory Kit includes 1 mounting bracket, 4 head screws and 1 sump wrench
All materials of constructions are FDA accepted. Final assemblies have been validated to pass USP class 6 Toxicology extractable tests, oxidizable substances for plastics, endotoxin level and other quality tests.

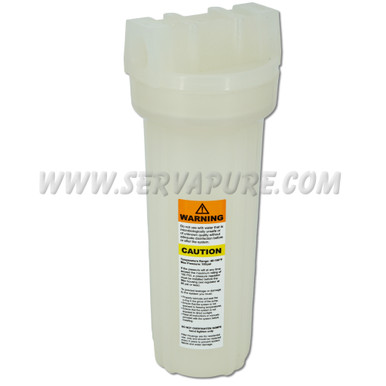

CHPN natural polypropylene housings are manufactured using high purity 100% all polypropylene materials giving you a wide range of compatibility and extremely low extractables. Available in ten or twenty inch lengths with 2-222 SOE or DOE style configurations. Inlet and outlet are 3/4″ FNPT. The smooth finish of the CHPN make it ideal for high purity applications. Superior construction designed to meet 150,000 cycles from 0 to 125 psi and pass a 500 psi burst test.
