Description

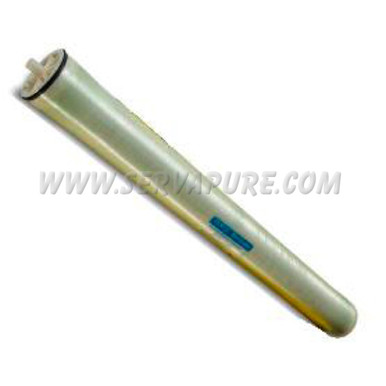

The Dow Filmtec LE-440i element is a low energy featuring breakthrough membrane chemistry. The HRLE-440i element delivers the same 99.5% nominal NaCl rejection as traditional brackish water elements but at 33% lower pressures.
– Lower energy requirement allow new reverse osmosis system to be designed to use one third less energy and still deliver the same permeate quality compared with other BW elements.– Existing low energy systems can be retrofitted to achieve lower permeate TDS than possible with previous low energy elements – The combination of low energy and high rejection is ideally suited for use in the second pass of seawater and high-purity applications– Excellent rejection of silica, boron, nitrate and ammonium, supported by Dow’s modeling software– Increased IPA rejections (IPA rejections is a common surrogate for TOC removal)– Available dry for longer storage life and easier handling
– Model: HRLE-440i– Diameter: 8″– Length: 40″– Hard fiberglass outer shell– Applied Pressure: 150 PSI– Nominal Capacity: 12,650 Gallons Per Day– Maximum Pressure: 600 PSI– Weight: 40 lb.– Stabilized salt rejection: 99.3%– 28 mil feed spacer– Max. Operating Temperature: 113°F (45°C)– Max Feed Flow Rate: 85 GPM– Max Pressure Drop: 13 PSI– 440 ft2 of active membrane surface area– May Be cleaned over the widest pH range (pH 1-13) for the most effective cleaning
Used In:– Commercial water demineralization
Advantages:– High rejection results in excellent water quality– Low energy usage reduces power consumption and costs– Durable with good clean ability for long element life– Filmtec performance and quality
