Description

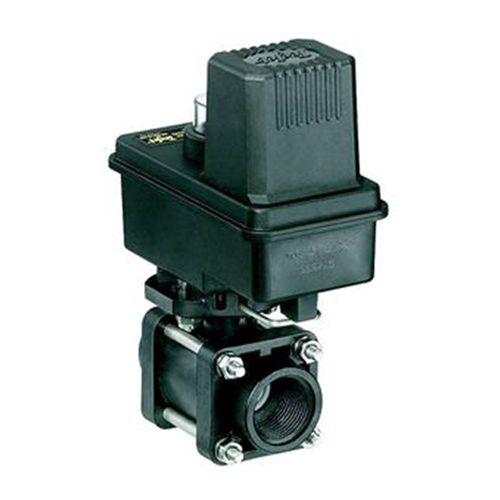

This Electric Shutoff Ball Valve (344B) is a 2-way valve that comes with the EC series motor. The EC type motors work with a simple on/off switch and are compatible with all sprayer controls.
The 2-way shutoff ball valve has 1″ ports and allows a complete shutoff. It has a stainless steel stem with a polypropylene ball. The maximum pressure rating is 300 PSI (20 bar). The flow rate for the 344BEC 2-way valve is 32 GPM (121 l/min) flow rate with a 5 PSI (0.34 bar) pressure drop.
Specifications
- Comes with 1″ ports
- 25 RPM, 3/4 second response time to shutoff fully open to close
- Flexible inlet/outlets provide quick simple plumbing for a single valve
- Maximum pressure rating is 300 PSI (20 bar)
- The flow rate for the 344BEC 2-way valve is 32 GPM (121 l/min) with a 5 PSI (0.34 bar) pressure drop
- Stainless steel stem with polypropylene ball
- Wetted parts are nylon, Teflon®, polypropylene, stainless steel, and Viton ®
