Description

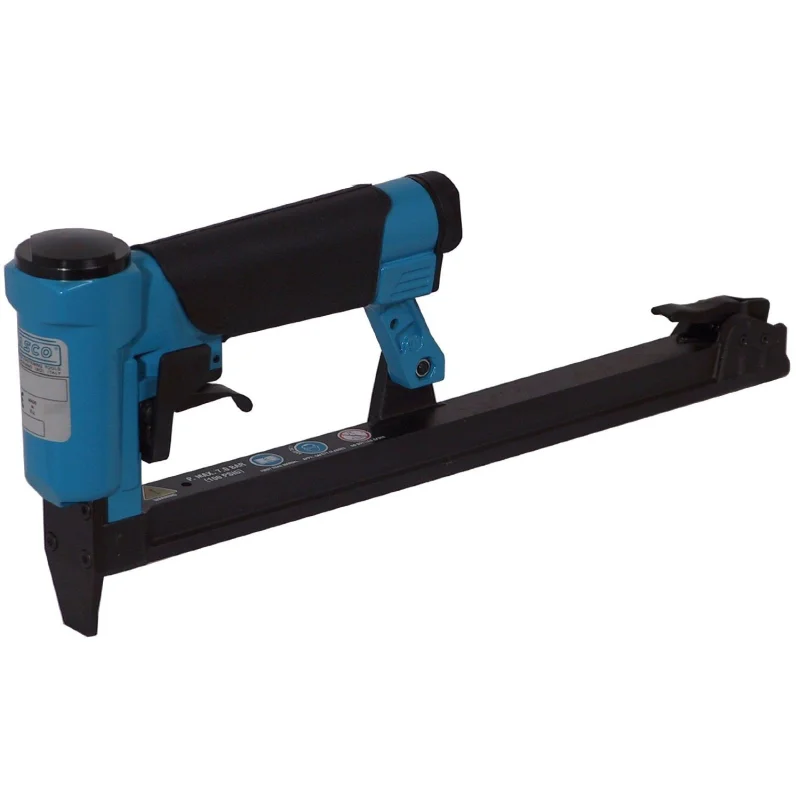

F1B 7C-16 Fasco Auto Fire Long Magazine Upholstery Stapler 22 gauge Automatic tool with double length magazine for “7C” staples with length from 6 to 16 mm Auto-fire stapler with adjustable dial speed control Accepts Senco C and 71 series staples Double length magazine for added staple capacity 1/4-Inch to 5/8-Inch leg length staples 3.4 Pounds
TOOL CHARACTERISTICS
| Item Number | 11186F |
|---|---|
| Tool Type | Fine Wire Stapler |
| Capacity | 390 staples |
| Fastener Length | 1/4 – 5/8″6 – 16 mm |
| Height | 6.18″157 mm |
| Width | 1.65″42 mm |
| Length | 14.80″376 mm |
| Weight | 3.00 lbs1.370 kg |
| Pressure | 70 – 100 psi5 – 7 bar |
| Air Consumption per Cycle | 0.17 l/cycle Performances at 90 psi / 6.2 bar (0.62 MPa) |
| Lubricant | Aerospace Lubricants Tribolube 12 |
| Actuation System | Contact Actuation, Single Shot |
| Loading | Bottom Loading |
| Noise Value |
(EN 12549+A1 : 2008, EN ISO 4871 : 2009)
|
