Description

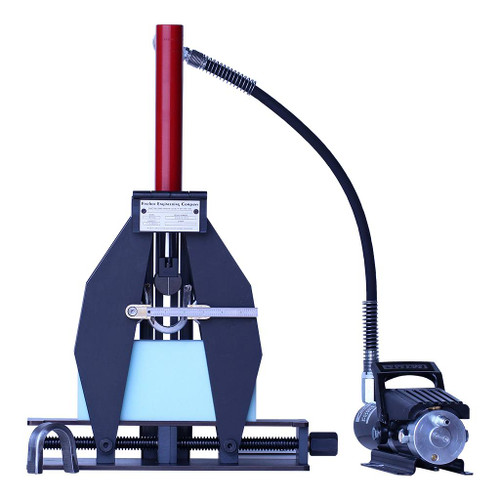

This versatile unit allows your welding program to grow and to meet changing needs. Readily adjustable for all standard radii and up to 3/8″ or 1/2″ thick specimens required by the ASME, AWS, API, and Military codes and standards. Comes with a 1-1/2″ diameter mandrel which is the one most commonly used for 3/8″ thick plain carbon and stainless steels. Unlike die-type jigs that use rounded shoulders, this unit uses hardened, tool steel rollers to support the specimen during bending. The rollers rotate on heavy-duty needle bearings so there is no drag placed on the specimen. The bent specimens bottom eject into a foam cushion.
- Easily adjusted for different bend radii
- 1/8″ to 1-7/8″ bend radii standard
- Rapid, multiple bends possible
- For manufacturing/fabricating environments
- Integral hydraulic system
- Portable
Code Compliance: ASME, AWS, API, MIL
Specimen Thickness: 1/8″ to 1/2″
Mandrel Range: 0.250″ to 3.750″ dia.
Bending Force: 10,000 lb. maximum
Service Required: 90-120 psi air at 6-9 cfm
Bender size: 17″W x 6″D x 22″H
Pump size: 5″W x 15″D x 6″H
Weight: 67 lbs.
Includes
integral hydraulic cylinder
air-driven pump
mandrel
mandrel adapter
