Description

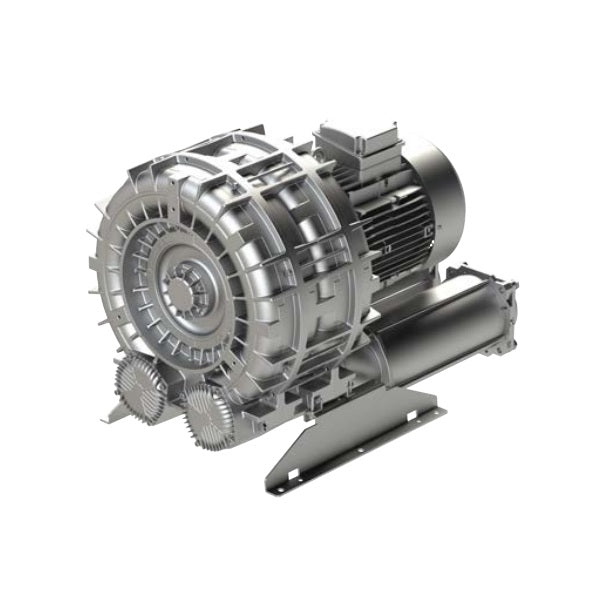

FPZ SCL e08-TS-15-3, 15 HP Regenerative Blower
FPZ manufactures one of the most extensive lines of blowers in the world, featuring cutting edge technology backed by their industry-leading warranty. TS Twin Impeller/Single Stage blowers are the ideal choice when high airflows are needed, with airflows twice those of MS blowers.
The standard FPZ design is a direct drive configuration, with a dynamically balanced impeller fitted directly on the motor shaft. Fitted motors are 2-pole, 1 or 3 phase, and rated for continuous service. Standard motors utilize class F insulation, are suitable for use with a variable speed drive (3 phase only), and are tropicalized for corrosion resistance.
Features
- Premium efficient motor
- High efficiency impeller
- Mountable in any position
- Maintenance free operation
- TEFC (IP55)
Specifications
| MPN | SCL e08-TS-15-3 |
|---|---|
| Horsepower | 15 |
| Open Flow (cfm) | 712 |
| Voltage | 208-230/460 |
| Connections | 4″ NPT |
