Description

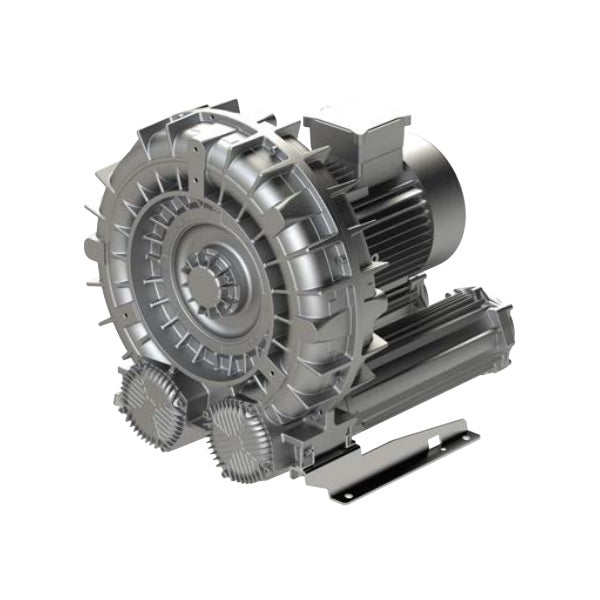

FPZ SCL e07-MS-5.5-3, 5.5 HP Regenerative Blower
FPZ manufactures one of the most extensive lines of blowers in the world, featuring cutting edge technology backed by their industry-leading warranty. MS Single Impeller/Single Stage blowers feature airflows to 700 cfm and pressures to 7 PSIG. When pneumatic requirements can be met by MS blowers, these are generally the blowers of choice.
The standard FPZ design is a direct drive configuration, with a dynamically balanced impeller fitted directly on the motor shaft. Fitted motors are 2-pole, 1 or 3 phase, and rated for continuous service. Standard motors utilize class F insulation, are suitable for use with a variable speed drive (3 phase only), and are tropicalized for corrosion resistance.
Features
- Premium efficient motor
- High efficiency impeller
- Mountable in any position
- Maintenance free operation
- TEFC (IP55)
Specifications
| MPN | SCL e07-MS-5.5-3 |
|---|---|
| Horsepower | 5.5 |
| Open Flow (cfm) | 307 |
| Voltage | 208-230/460 |
| Connections | 3″ NPT |
