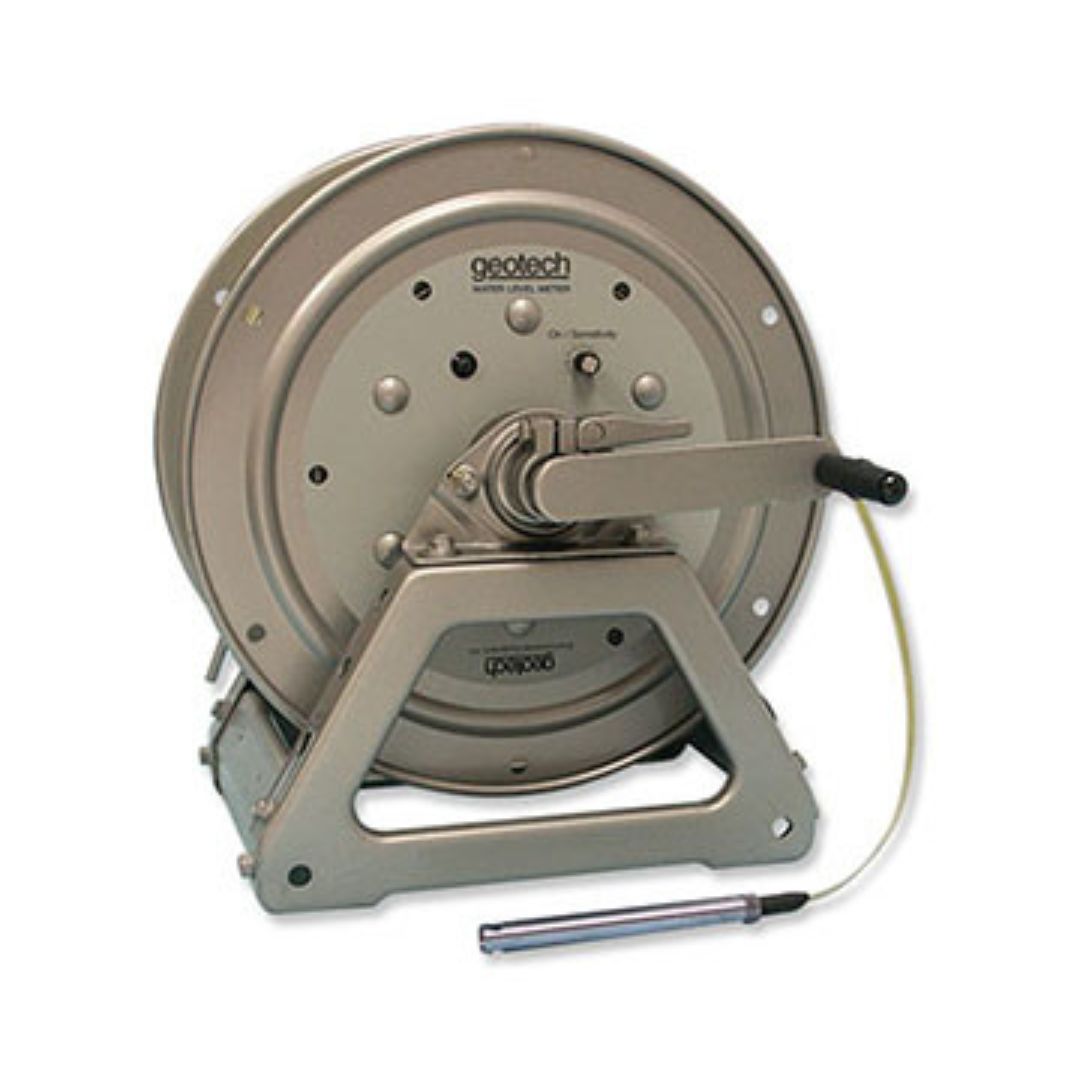

Geotech 1500′-5000′ Water Level Meters
The Geotech Water Level Meters are portable instruments used to accurately measure water levels in monitoring wells and bore holes. The meter detects water levels with a 5/8″ (15.8mm) O.D. stainless steel weighted probe attached to a polyethylene tape marked to 1/100 of a foot (3mm).
Features:
- Choice of highly accurate Polyethylene coated steel tape marked in engineering or metric increments
- Field serviceable 5/8″ (15.8mm) probe with stainless steel conductors for durability
- Adjustable sensitivity to prevent false triggering
- Audible and visible alarms activated when the probe makes contact with water
- Easily replaced 9 volt battery
- MDPE or ETFE coated steel tape available upon request
- Optional tape weight to help sink probe into a deep or crooked well
Specifications:
|
Accuracy: ET Tape
|
100th of a foot /100′ (3m/ 30m) |
|
|
Min. Detectable Conductivity |
10 μS |
|
| Material: | ||
| Reel | Steel and aluminum | |
| Tape | Polyethylene coated steel | |
| Probe | Stainless Steel and Acetal | |
| Power: | 9 Volt DC alkaline battery | |
| Battery Life | 8 hours continuously detecting>1 year On not detecting | |
| Alarm | 5 kHz output tone | |
| Operating Temperature | 32°-140°F (0°-60°C) | |
| Storage Temperature | -40°-150°F (-40°-70°C) | |
| Response Time: | <10 milliseconds |
