Description

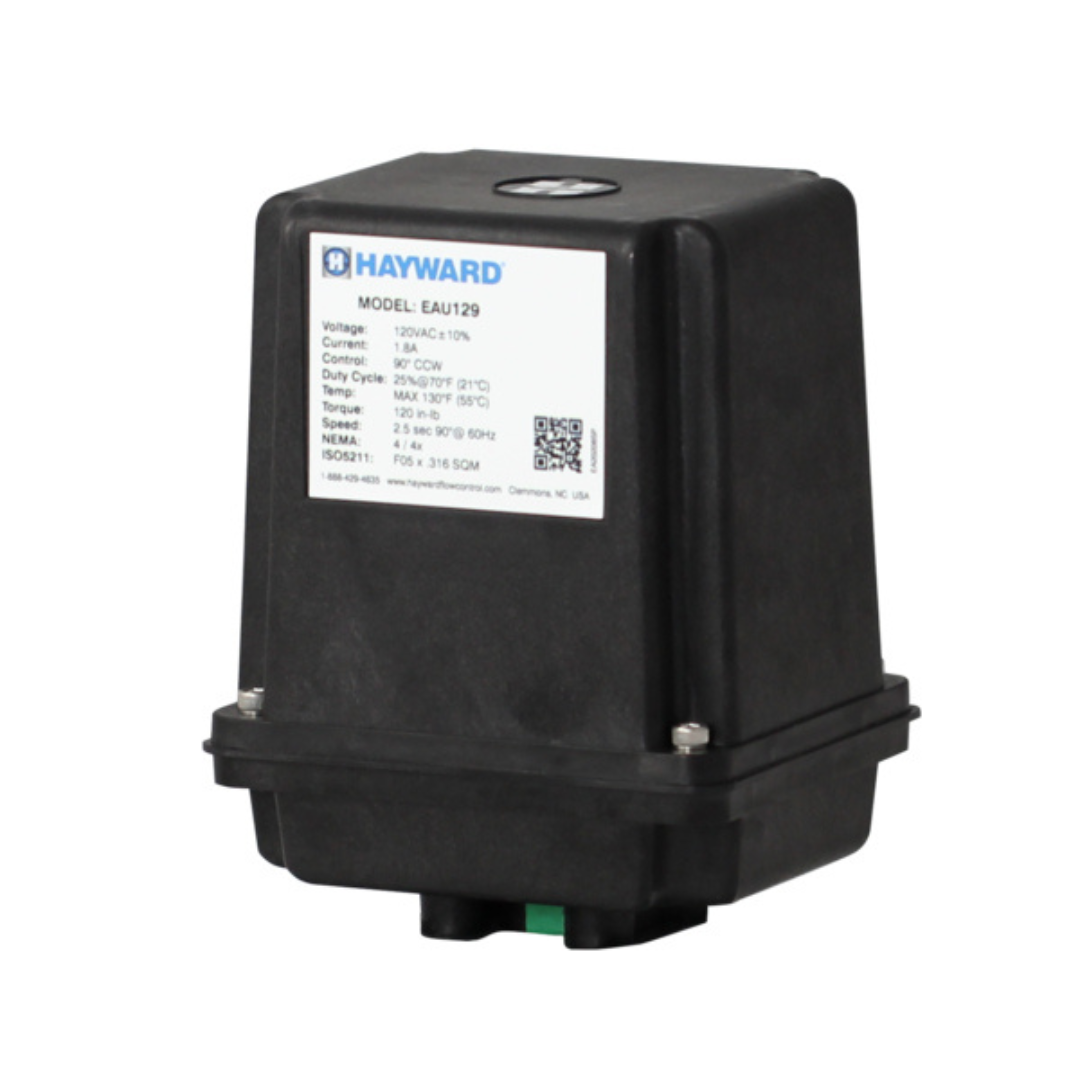

Hayward EAU1 Series Actuator
The EAU1 Electric Actuator is a full-featured unit with an ISO5211 compliant F05 base.
Hayward Datasheet
Operator’s Manual
Features:
- ISO5211 Compliant F05 Base
- UL/CSA Listed Motor
- Thermoplastic NEMA 4 / 4X Enclosure
- 2.5 Second, 90° Cycle Time, 5.0 sec 180° Cycle Time
- Permanently Lubricated Gear Train
- Actuator Brake
- 90 or 180° Operation
- Unidirectional, Not Reversing
- Terminal Block Connections
- Standard 120 VAC
- End of Travel Dry Contact Limit Switch
- Thermal Overload Protection
- Lightweight, Compact and Inexpensive
