Description
HILO Jacketed Motor Lead for Franklin 4 Inch Pump Motors – 12 Gauge, 3 Wire
Hi-Lo supreme twisted type, UL approved cable furnished in pre-cut lengths with water tight Viton plug on one end for direct connection to Franklin 4” and 6” motors. Cable uses stranded copper conductors.
Specifications:

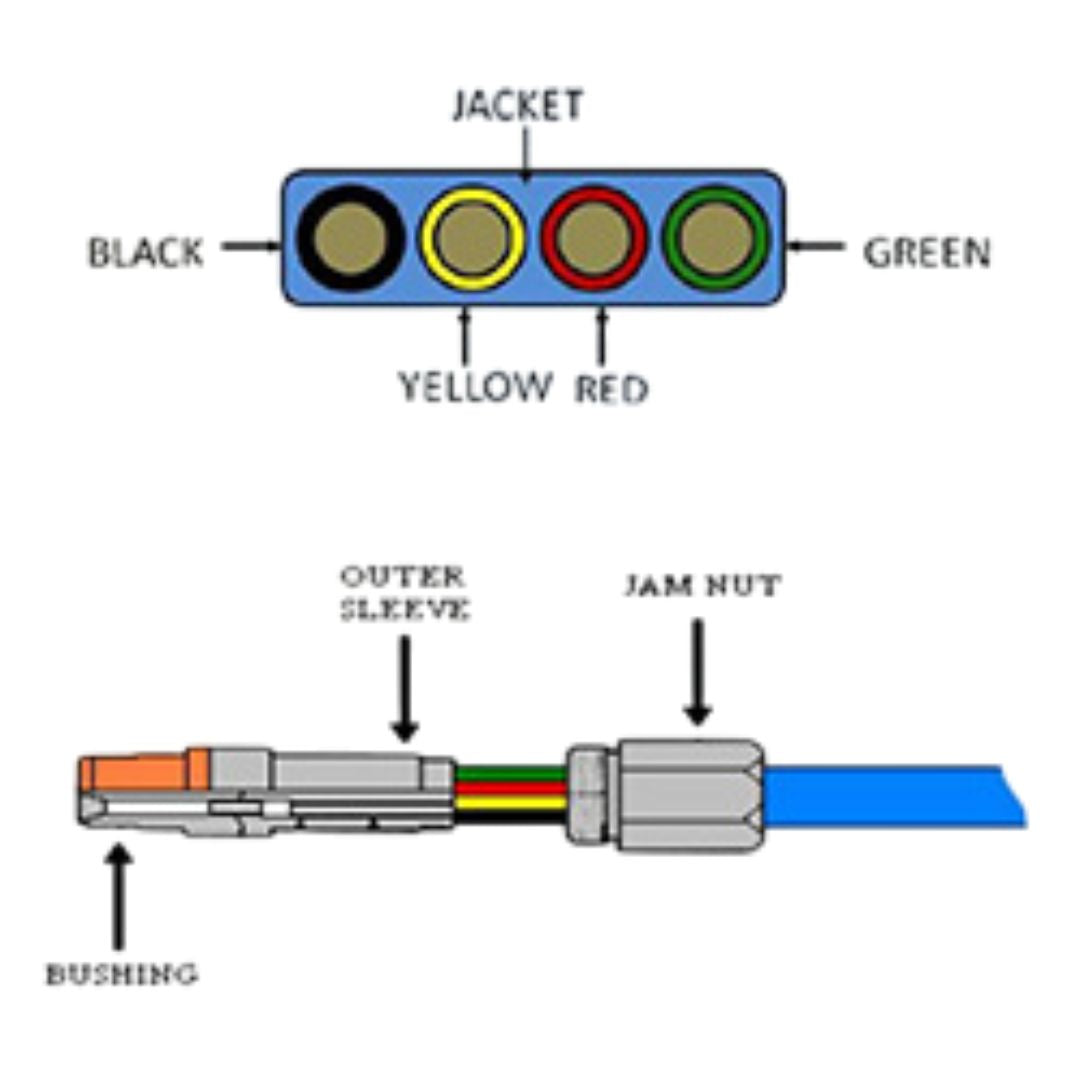

- CONSTRUCTION: Jam nut/sleeve – 316 stainless steel, bushing – 4” Viton / 6” Polychloroprene
- CONDUCTORS: 19 STR
- INSULATION: STPE .045” wall nom.
- COLOR CODE: Black, Yellow, Red, Green
- OVERALL DIAMETER: 0.455”
Datasheet
