Description

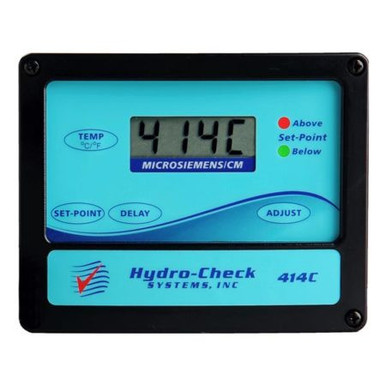

The 414C and 414TDS, Conductivity Monitor-Controllers set a new standard in performance at a reasonable cost. Designed for the demands of Water Conditioning and Water Treatment applications, they are the ideal specification for the OEM, Engineer, or Service Dealer.
Four Range Auto-Ranging to 10,000 MS or 5000 p m TDS insures precise accuracy and optimum resolution for virtually any system…pure water or feed, process or wastewater… without requiring different cell constants!
Temperature may be momentarily displayed in C° and °F. Large 1⁄2 inch digits make the LCD easy to read at a distance.
The 414’s also feature a High/Low Set-Point Controller for connection of valves, alarms, etc. Activation of the SPDT relay may be delayed from 0 to 999 sec to compensate for any anticipated equipment rinse-up times. All is easily programmed via just 3 pushbuttons. Front panel red and green LEDs indicate water quality relative to the set-point. Monitor– Conductivity Range: 0 – 9999 Microsiemens/cm- Temperature Display: 32-122°F (0-50°C)- Accuracy: – Conductivity: +/- 3% of reading, Repeatability +/- 1% – Temperature: +/- 0.1°C- Temperature Compensation: Automatic from 25°C from 5 to 50°C- Measurement Update: 3 times per second- Display: 1/2″, 4 Digit LCD General– Power Input: Selectable 110 or 220 VAC, 50-60 Hz (24 VAC available)- Power Consumption: 2.4 Watts; 20 mA @ 110 VAC- Enclosure: ABS, panel or wall mount
