Description

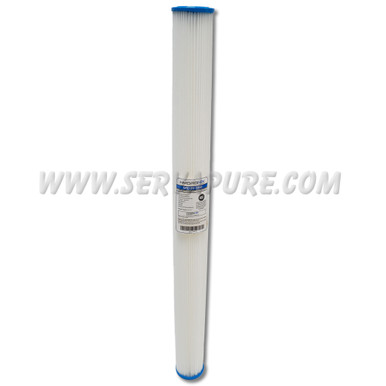

Hydronix SPC Series polyester pleated cartridges are manufactured from durable polyester to provide you with a superior pleated cartridge that is washable and reusable. The polyester media is pleated around a Polypropylene core for added strength and the ends are immersed in a thermosetting Vinyl Plastisol which fuses the three components together forming a unified end cap and gasket. The cartridge are bacteria and chemical resistant and provide great dirt holding capacity to extend the time between cartridge changes outs.
Features:– Graded density for high dirt holding capacity- Manufactured from 100% pure polypropylene- NSF Standard 42, 61 and 372 certified- Made with FDA CFR 21 Approved Materials
Applications– Electroplating, etching and image developing processes in PCB industry- Pre-filter for DI and RO Water filtration systems- Pre-filtration for low viscosity chemicals- Pre-filtration for manufacturing and water recycling
Specifications– Micron Rating: 50 microns- Dimensions: 2.5″ x 30″- Box Dimensions: 13″ x 11″ x 31″- Box Qty: 20- Weight: 23.1 Pounds
Materials Of Construction– Filter Media: Non Woven Polyester- End Caps: Vinyl Plastisol- Core: Polypropylene
Operational Data– Temperature Range: 40°F to 125°F- Max Flow: See Spec Sheet
