Description

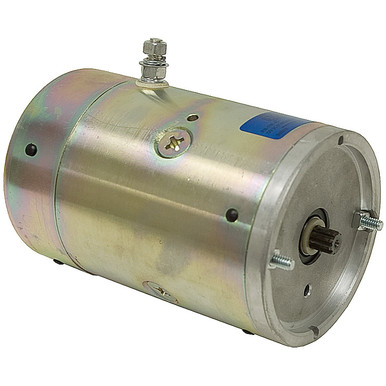

12 VDC HYD POWERPACK MOTOR
Brand new, SPX Stone model KMD1 (1787-AC) wound field motor.Use on hydraulic power packs. Single terminal standard duty.Included 9 tooth 0.48″ dia splined coupling to connect to pump.
SPECIFICATIONS
- Voltage 12 DC
- Amperage270 amps (max.)
- Rotation CW
- Duty Intermittent 8% duty
(24 seconds on/276 seconds off in 5 minutes at full load). - EnclosureTENV
- Mount 2 studs, 3-1/2″ c/c
- Shaft 0.48″ dia 9 tooth spline
- Size4-1/2″ dia. x 7″
- Shpg.17 lbs.
