Description

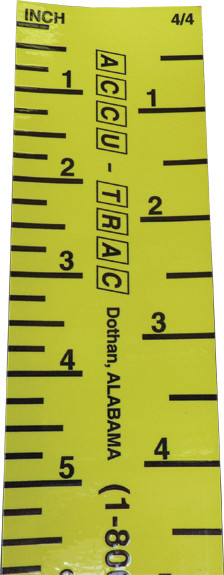

Measure the height of each cut with an adhesive log scale. Simply attaches to your sawmill frame. Made of tough vinyl material with a strong magnetic back. Yellow background with black lettering. Each scale has a total of two measurement systems; one on the left and one on the right.
These will work for logs up to 36″
There are four different scale types you can choose from:
- 1″ & 4/4 Scale – one side has a true scale measurement broken into 1/4″ increments, next to that is a 4/4 scale where each line takes into account the blade thickness, so the 1″ mark actually measures 1-3/16″ and once you make your cut you are left with roughly a 1-1/8″ board.
- 5/4 & 6/4 Scale – the 1″ mark on the 5/4 scale will measure 1-1/2″ and on the 6/4 scale the 1″ mark will measure 1-3/4″
- 1″ & 2″ Scale – the 1″ mark on 1″ scale measures 1-1/16″ and the 1″ mark on the 2″ scale measures 2-1/16″
- Cross Tie Scale – it is marked to make either a 6″, 7″, 8″, or 9″ cross tie cut. Numbers start at the top
Additional Notes:
- Numbers that starting at the top and increasing as they go down
Choose the type of scale you would like.
