Description

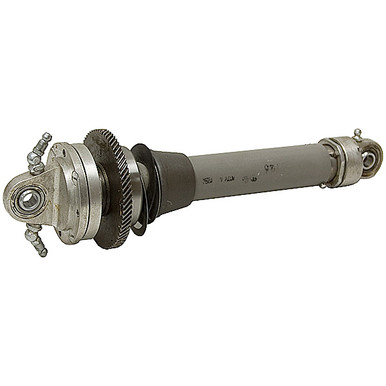

SCREWJACK
New, ball screw type screwjack. Designed to convert rotary motion to linear motion. Two grease zerks in both swivel eye housings. Retracted length measured from swivel eyes center to center.
SPECIFICATIONS
- Travel 5-1/2″
- Retracted Length 10.5″
- Input Gear Type Helical
- Input Gear Outside Diam. 3-1/8″
- Input Gear Tooth angle 40 degree
- Bearing Outside Diameter 2.165″ O.D.
- Revolutions Per Inch Of Travel 4 Revolutions per 1″ travel
- Rod End Mount Swivel-ball
- Pin Hole 3/8″ diam.
- Base End Mount Swivel-ball
- Size 12″ x 4″ x 4″
- Shpg. 6 lbs.
