Description

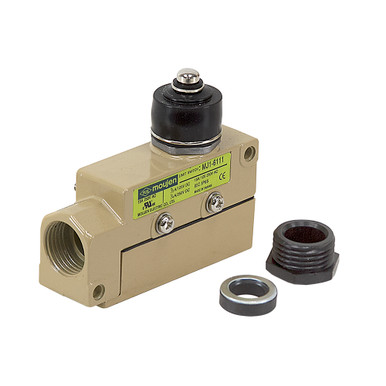

PLUNGER ENCLOSED SEALED LIMIT SWITCH
Brand new, RELAY & CONTROLS CORP limit switch. Rubber boot on actuator to protect switch. Gasket on metal housing for dust proof, oil tight and water resistant sealing. Operating temperature range 5°F-175°F. Maximum operating frequency 20 operations per minute. 1/2″ conduit entry.
SPECIFICATIONS
- Model MJ1-6111
- Contact Type Single Pole Double Throw
- Contact Ratings15 Amps @ 250 VAC
- Actuator DetailsPlunger
- Operating Force Max. 250-450g
- Releasing Force 114g
- Pre-Travel Max.0.8mm
- Over-Travel Min.5.5mm
- Differential Travel Max. .05mm
- Operating Position 40.2±0.8mm
- TerminalsScrew
- Side Mount 2 M4 screws, 1″ c/c
- Size 3.375″ x 1″ x 1.75″ (housing only)
- Shpg. 1 lbs.
