Description

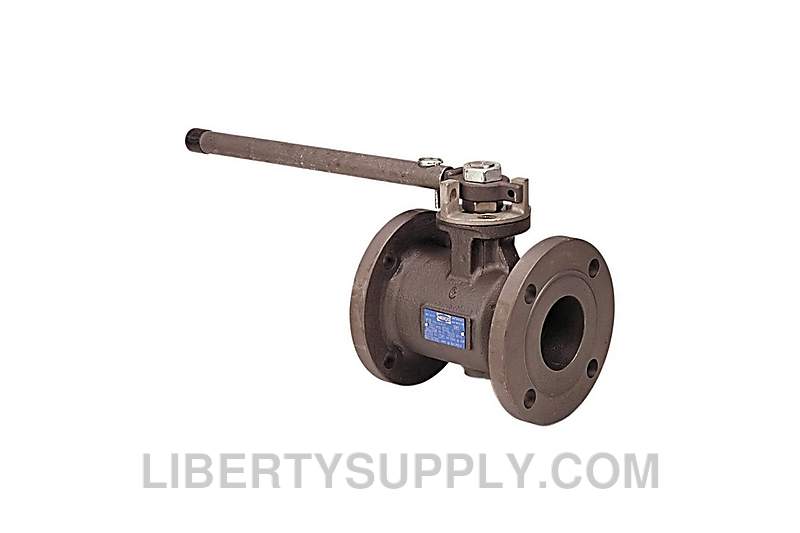

3/4″ flanged fire-safe, unibody carbon steel ball valve with conventional port, blowout-proof stem, stainless steel ball and stem, mounting pad, vented ball, locking handle or manual gear operator, and Class 150 flanged end connections.
Features
- Valve pressure rating 285 psi 19.7 bar non-shock cold working pressure
- Maximum temperature rating 400°F
- Conventional port
- Blowout-proof stem
- Stainless steel ball and stem
- Mounting pad
- Fire safe
- Vented ball
- Locking handle or manual gear operator
- Class 150 flanged end connections
- Conforms to MSS SP-72
- API-607 Fourth Edition Fire Safe
- API-608 Anti-Static
