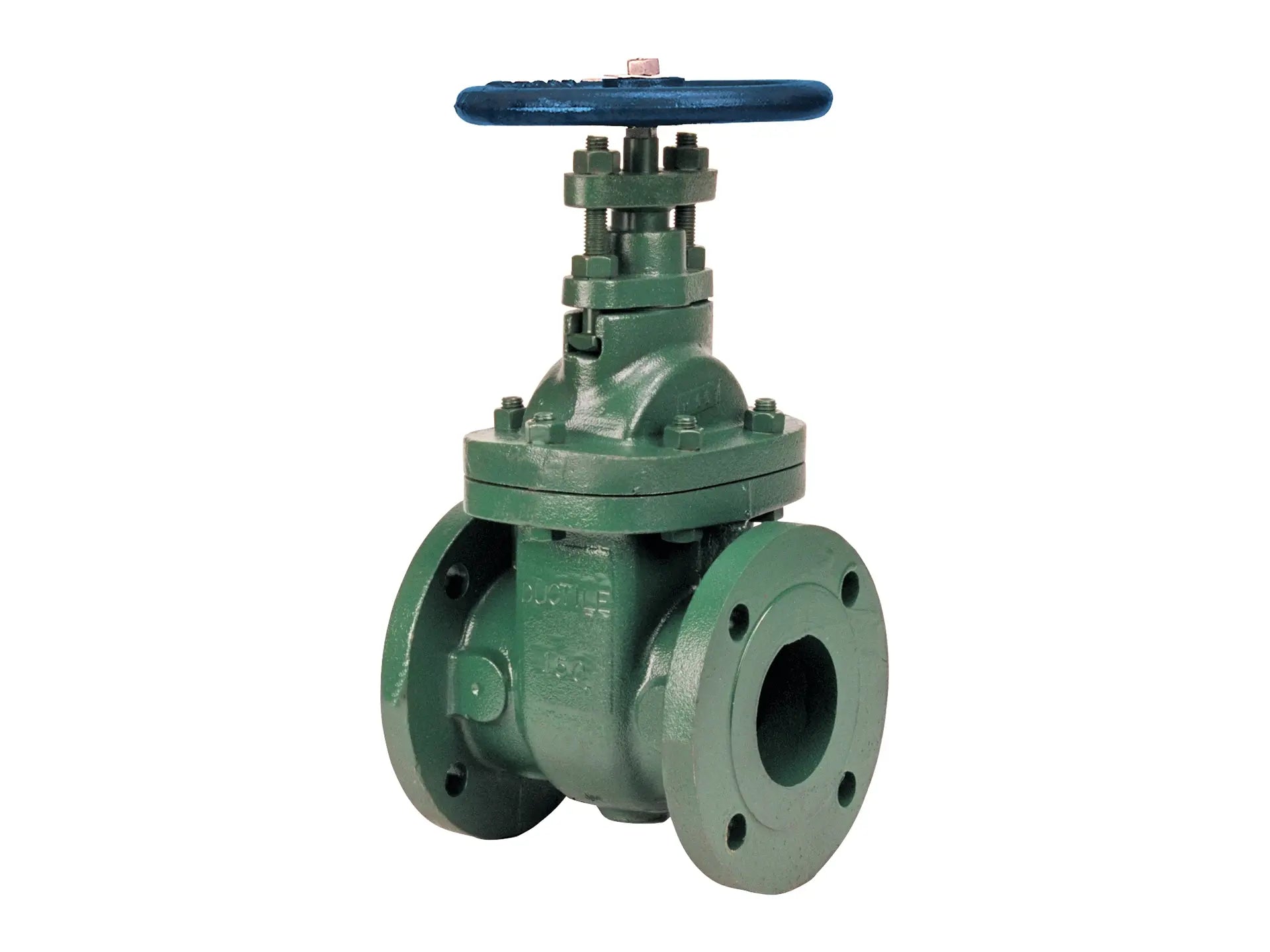

NIBCO NHA701E, 2-1/2 in. Gate Valve Class 150, Ductile Iron, Bronze Trim, Flanged F-639-31

Description

2-1/2″ flanged ductile iron gate valve rated for 150 psi/10.3 bar saturated steam to 366°F/185&degC. This valve features an outside screw and yoke, bolted bonnet, solid wedge, bronze trim, and Class 150 raised face flanged end connections. Use in U.S. drinking water applications is prohibited after January 3, 2014.

Features

• 150 psi/10.3 bar saturated steam to 366°F/185°C
• 250 psi/17.2 bar non-shock cold working pressure
• Bolted bonnet
• Solid wedge
• Iron body bronze mounted (IBBM)
• Class 150 raised face flanged end connections
• Use in U.S. drinking water applications is prohibited after January 3, 2014
• Conforms to MSS SP-128
