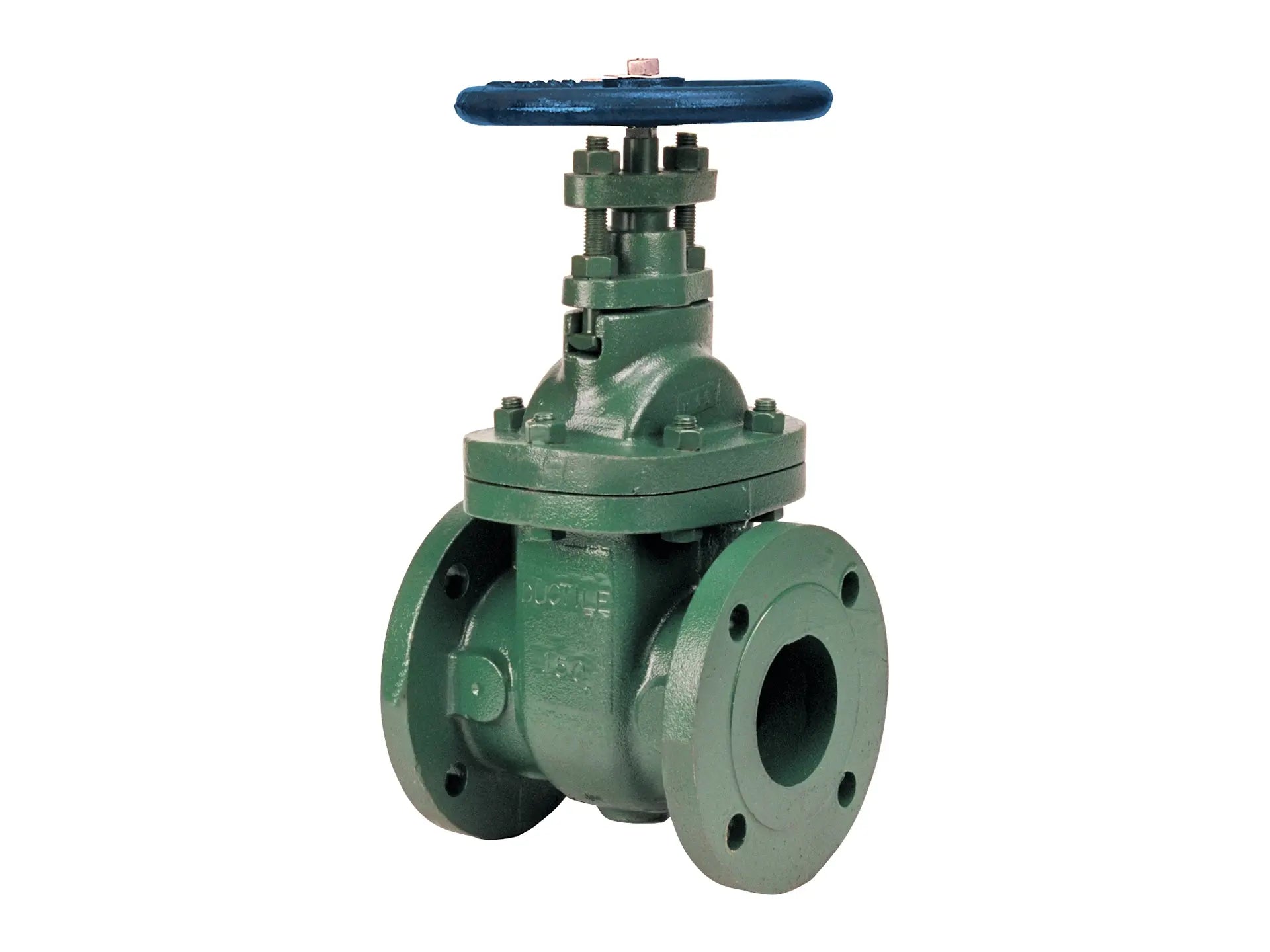

NIBCO NHA720F, 3 in. Gate Valve Class 150, Ductile Iron, Stainless Steel Trim, Flanged F-639-33

Description

3″ flanged ductile iron gate valve rated for 150 psi/10.3 bar saturated steam to 366°F/185&degC. This valve features a non-rising stem, bolted bonnet, solid wedge, stainless steel trim, and Class 150 raised face flanged end connections. Use in U.S. drinking water applications is prohibited after January 3, 2014.

Features

• 150 psi/10.3 bar saturated steam to 366°F/185°C
• 250 psi/17.2 bar non-shock cold working pressure
• Non-rising stem
• Bolted bonnet
• Solid wedge
• Class 150 raised face flanged end connections
• Conforms to MSS SP-128
