Description

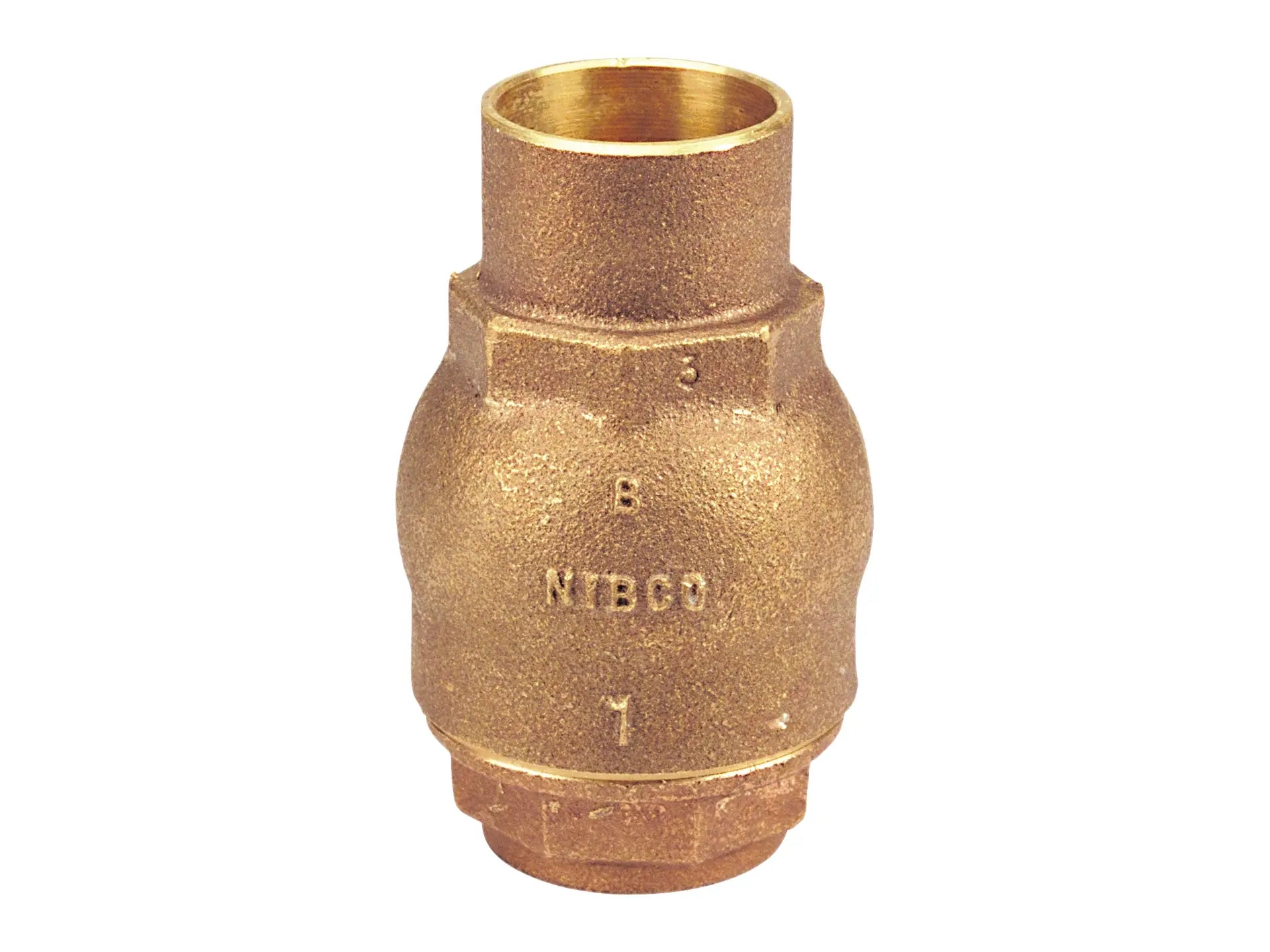

1/2″ female solder cup, in-line lift bronze check valve rated for 125 psi/8.6 bar saturated steam to 353°F/178°C. This valve features a PTFE resilient seat disc and Class 125 solder end connections. It is spring actuated (1/2 psi cracking pressure). Use in U.S. drinking water applications is prohibited after January 3, 2014.
Features
- 125 psi/8.6 bar saturated steam to 353°F/178°C
- 250 psi/17.2 bar non-shock cold working pressure
- In-line lift-type
- Spring actuated (1/2 psi cracking pressure)
- PTFE resilient seat disc
- Class 125 solder end connections
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-80
