Description

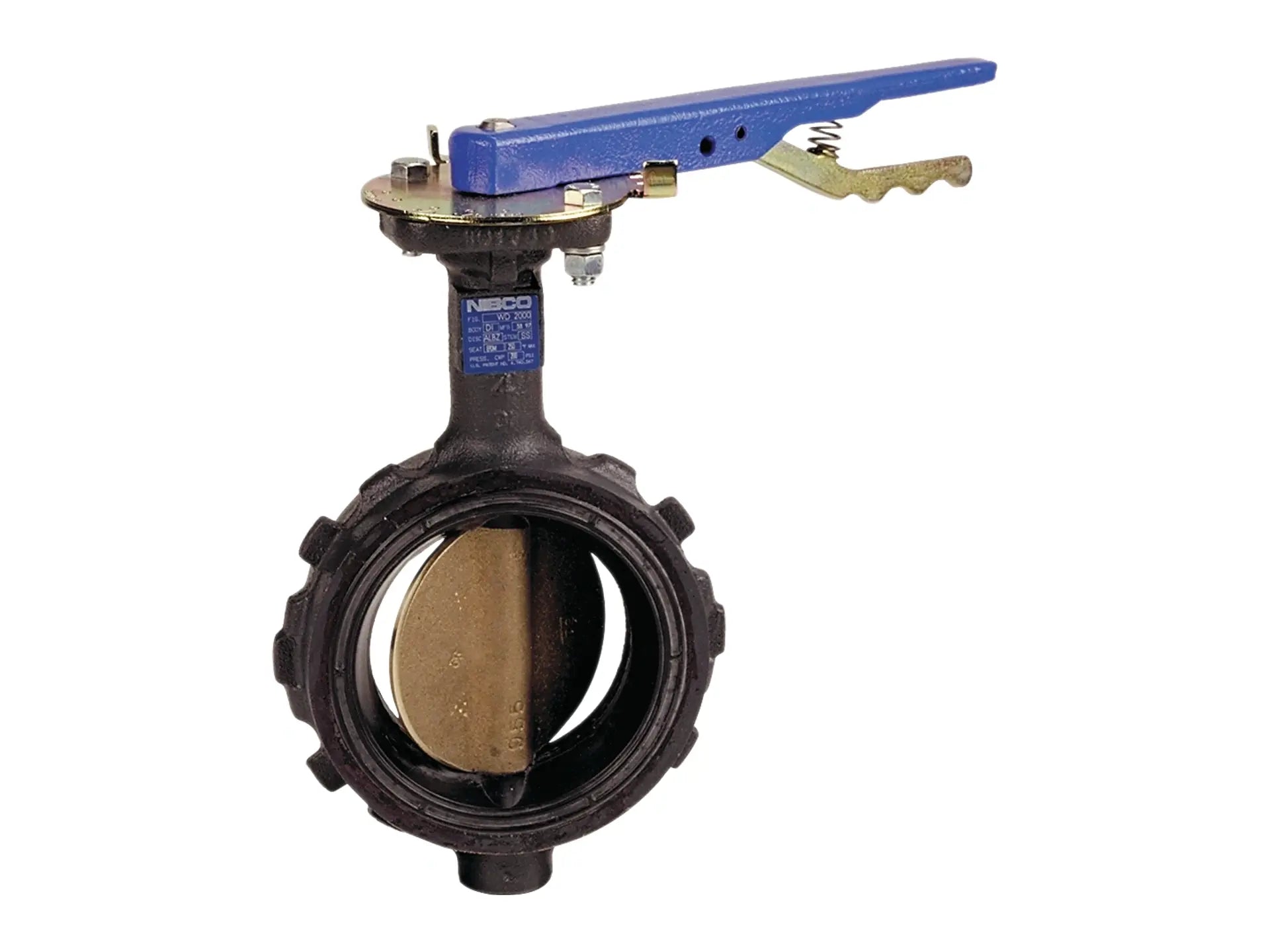

4″ wafer-style lead-free ductile iron butterfly valve with lever-lock handle rated for 225°F continuous and 250°F intermittent service. This valve features an EPDM molded-in seat liner, CF8M stainless steel disc, geometric drive, extended neck, and stainless steel stem with copper bushings. Not recommended for steam service.
Features
- Valve pressure rating 200 psi
- 225°F continuous and 250°F intermittent service
- Wafer style
- EPDM molded-in seat liner
- CF8M stainless steel disc
- Stainless steel stem with copper bushings
- Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator
- Lead-free
- Not recommended for steam service
- Designed to meet MSS SP-67
- MSS SP-25 (markings)
- U.S. Coast Guard Category A
- California Health and Safety Code Section 116875
- Vermont Act 193
