Description

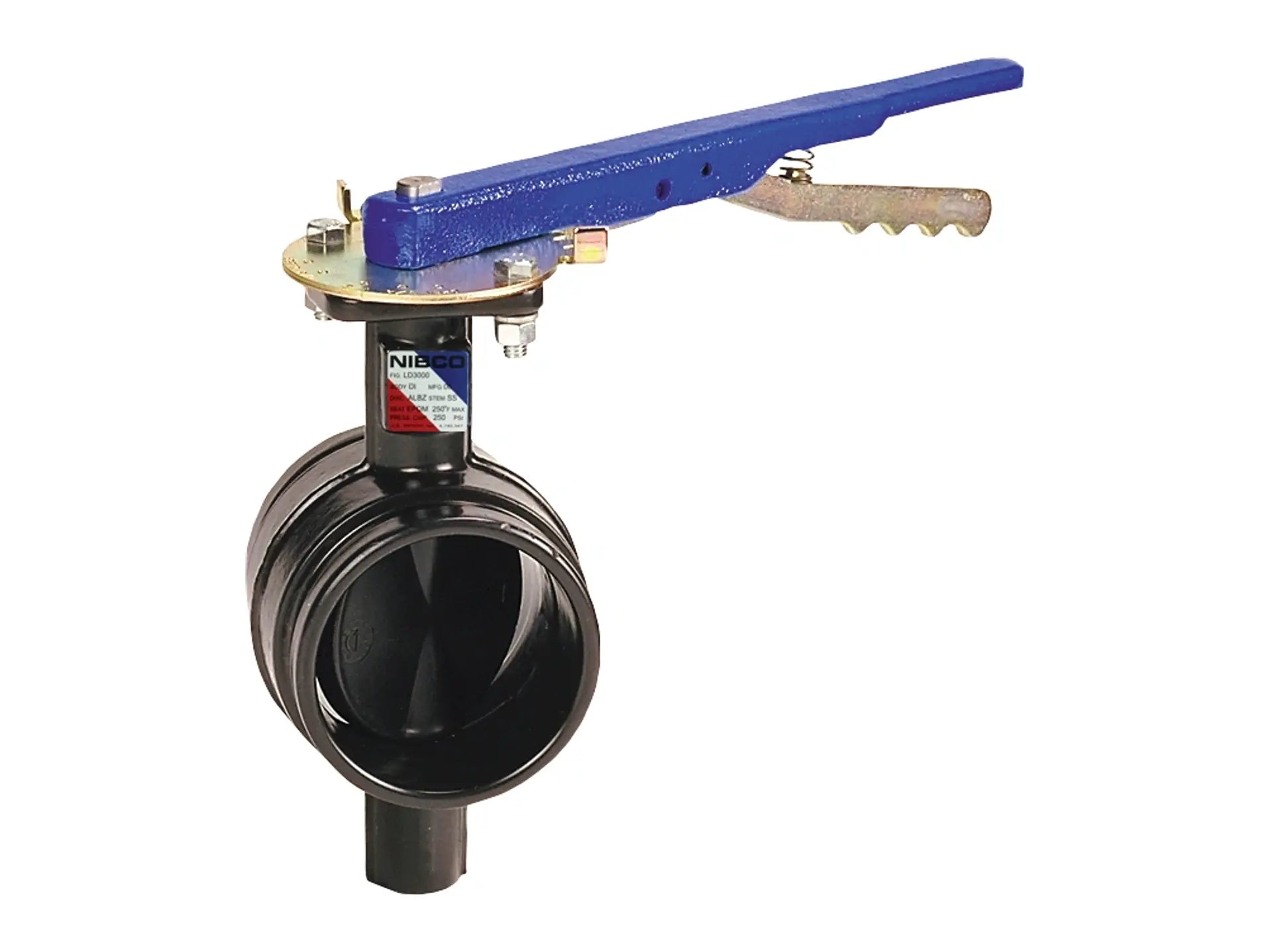

5″ grooved ductile iron butterfly valve with an EPDM encapsulated ductile iron disc, stainless steel stem with metal bushings, splined drive, extended neck, and bare stem. Not recommended for steam service.
Features
- Valve pressure rating 300 psi (2″ to 10″); 200 psi (12″ only)
- Max temperature rating 180°F
- Grooved style
- Buna-N encapsulated ductile iron disc
- Stainless steel stem with metal bushings
- Splined drive
- Extended neck
- Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator
- Not recommended for steam service
- Designed to meet MSS SP-67
- MSS SP-25 (markings)
