Description

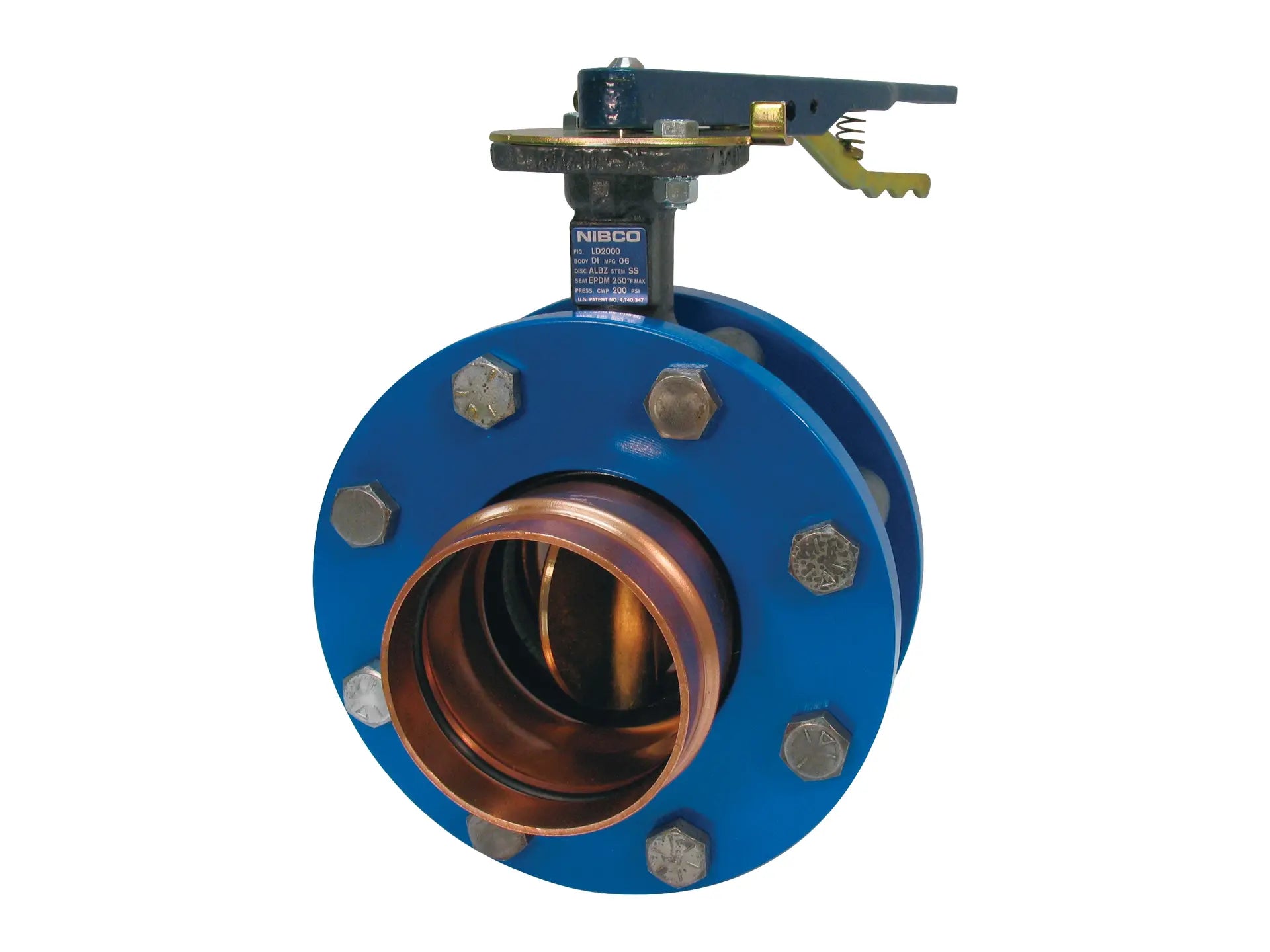

2-1/2″ press ductile iron butterfly valve with lever-lock handle rated for 225°F continuous and 250°F intermittent service. It features the NIBCO press system, a lug style, EPDM molded-in seat liner, aluminum bronze disc, stainless steel stem with copper bushings, geometric drive, and extended neck. Not recommended for steam service.
Features
- Valve pressure rating 250 psi
- 225°F continuous and 250°F intermittent service
- NIBCO® Press System butterfly valve
- Lug style
- EPDM molded-in seat liner
- Aluminum bronze disc
- Stainless steel stem with copper bushings
- Geometric drive
- Extended neck
- Operating mechanism: Lever lock
- Press x press female ends
- Not recommended for steam service
- MSS SP-25 (markings)
- Designed to meet API 609
