Description

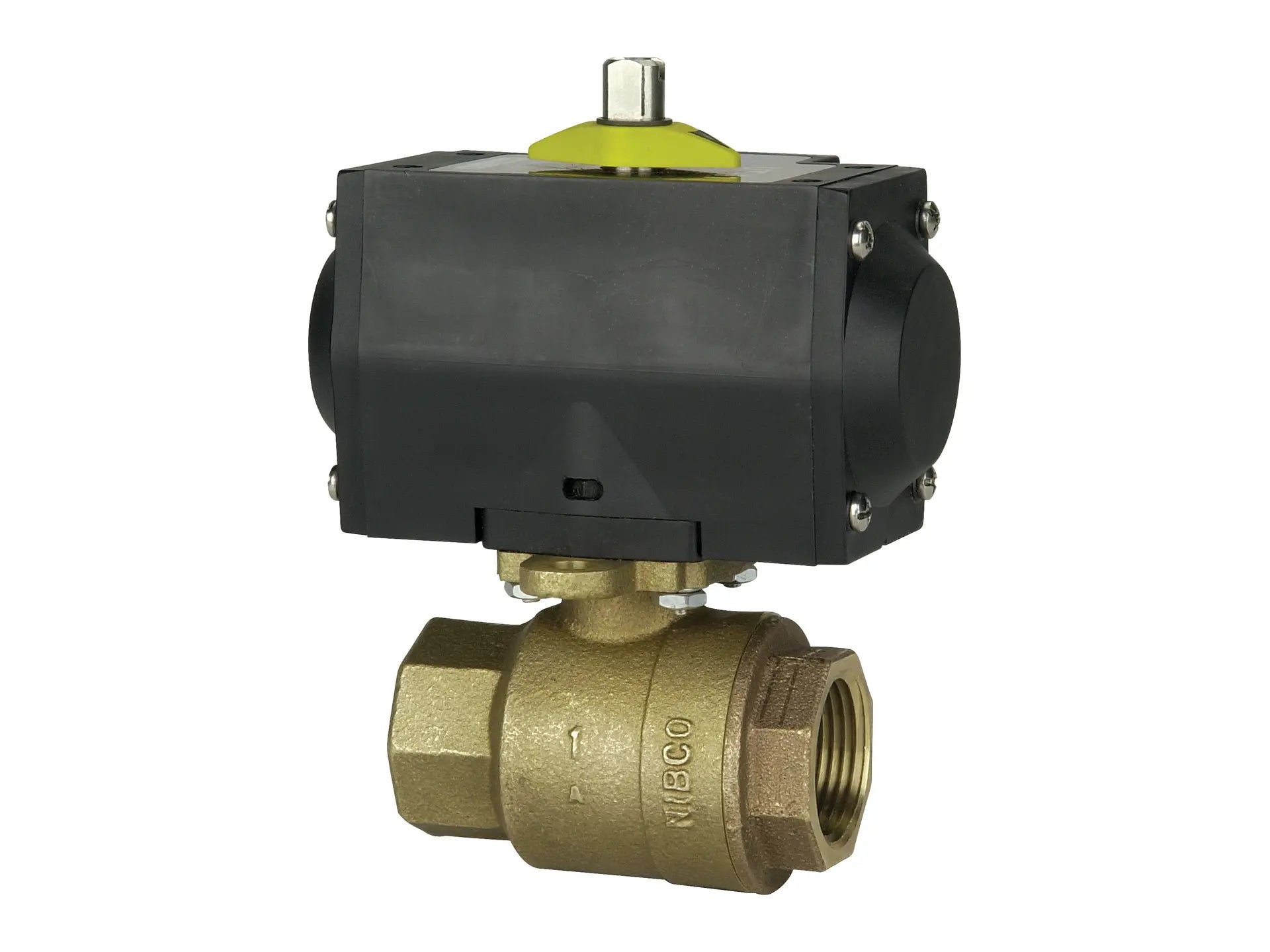

3/4″ FIPT two-piece bronze ball valve with full port, stainless steel ball and stem, blowout-proof stem, threaded ISO direct mount pad, pneumatic actuator, vented ball, standard lever handle, and optional NIB-SEAL. It is dezincification resistant. Use in U.S. drinking water applications is prohibited after January 3, 2014.
Features
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
- Maximum temperature rating 400°F
- Full port
- Stainless steel ball and stem
- Blowout-proof stem
- Threaded ISO direct mount pad
- Pneumatic actuator
- Vented ball
- Standard lever handle, optional NIB-SEAL®
- Dezincification resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-110
- Actuator mount per ISO 5211
