Description

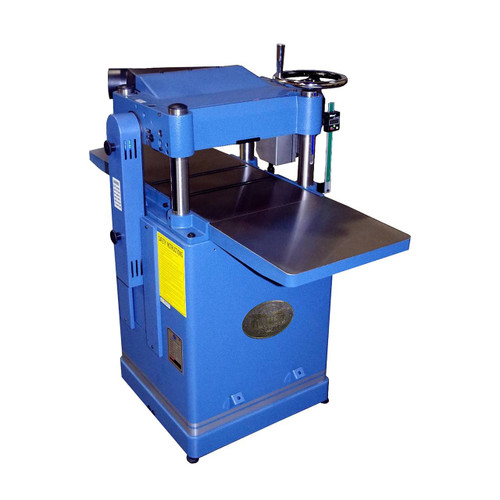

This cast-iron planer has a unique 4-post design that allows the motor and cutter head to move in unison, and ensures alignment regardless of stock thickness. Auto-depth lock features twin nitrogen cylinders that virtually eliminate snipping. The 4-sided premium carbide cutting inserts are indexed and easy to replace. Fixed table and extension wings are precision ground for smooth stock feeding and easy use of auxiliary stock support.
- Wixey digital read out allows for precise thickness settings.
- Large hand-wheel and support struts enable easy height adjustment.
- The 2-speed feed gearbox allows for better cuts.
- Oil bath gear lubrication for years of performance.
- 4” port allows excellent dust management.
- Built-in heavy-duty casters for mobility.
- Magnetic switch for added protection and safety.
Motor: 3HP, 1Ph, 220V, 12A
Maximum Stock Width: 15″
Maximum Depth of Cut: 1/8″
Maximum Stock Thickness: 6″
Minimum Stock Thickness: 3/16″
Minimum Stock Length: 6″
Dust Port Diameter: 4″
Minimum CFM Required: 650 CFM
Feed Speeds: 16/20
Bed Rollers: 2, Adjustable
Table Size: 15″ x 19-5/8″
Table Size w/Extension Wings: 15″ x 47-5/8″
Table Height: 30-1/8″
Cutterhead Diameter: 3″
Cutterhead Speed: 5,000 RPM
Number of Knives (helical): 52
Overall size: 28″L x 47-1/2″W x 52″H
Weight: 401 lbs.
Includes
drivers
wrenches
handwheel
dust hood
fasteners
