Description

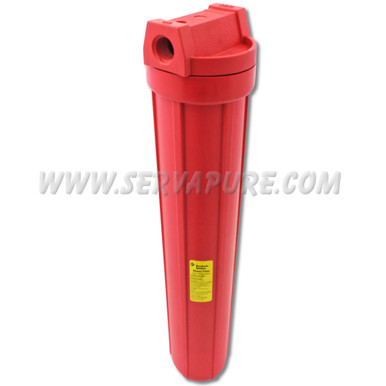

– High Temperature Filter Housing
– 20 Housing, 20″ Long
– 3/4″ NPT Inlet / Outlet Connection- Red Sump with Red Cap
– No Pressure Release Button
– Manufactured from Glass-Reinforced Nylon- Excellent Chemical Resistance
– Compatible with Standard Double Open End (DOE) Cartridges- Ideal for Industrial Applications Including Organic Solvents, Sea Water, Alcohol, Petroleum and Vegetable Oils
– Not to Be Used with Ketones- Economical Alternative to Stainless and Carbon Steel Housings
Abbreviations
MB – Mounting Boss for MC-1A Bracket (not included)
MM – Meter Mount for Differential Pressure Gauge (not included)
IB – Integrated Bracket, no Extra Wall Bracket Necessary
QC – Quick Connect, John Guest Push-to-Connect Fitting
3G – Third Generation Style Housing, Newest Design Available
PR – Pressure Release for Easier Filter Changes
SS – Stainless Steel
w/ – With
– 20 Housing, 20″ Long
– 3/4″ NPT Inlet / Outlet Connection
– Compatible with 2-1/4″ to 3-1/8″ Diameter Cartridges- FDA Grade Buna-N O-ring (Viton or Silicone available on request)- Max Temperature: 165 °F (73.9 °C)- Maximum Pressure: 125 psi (8.62 bar)- Standard 8 Housings per Case
