Description

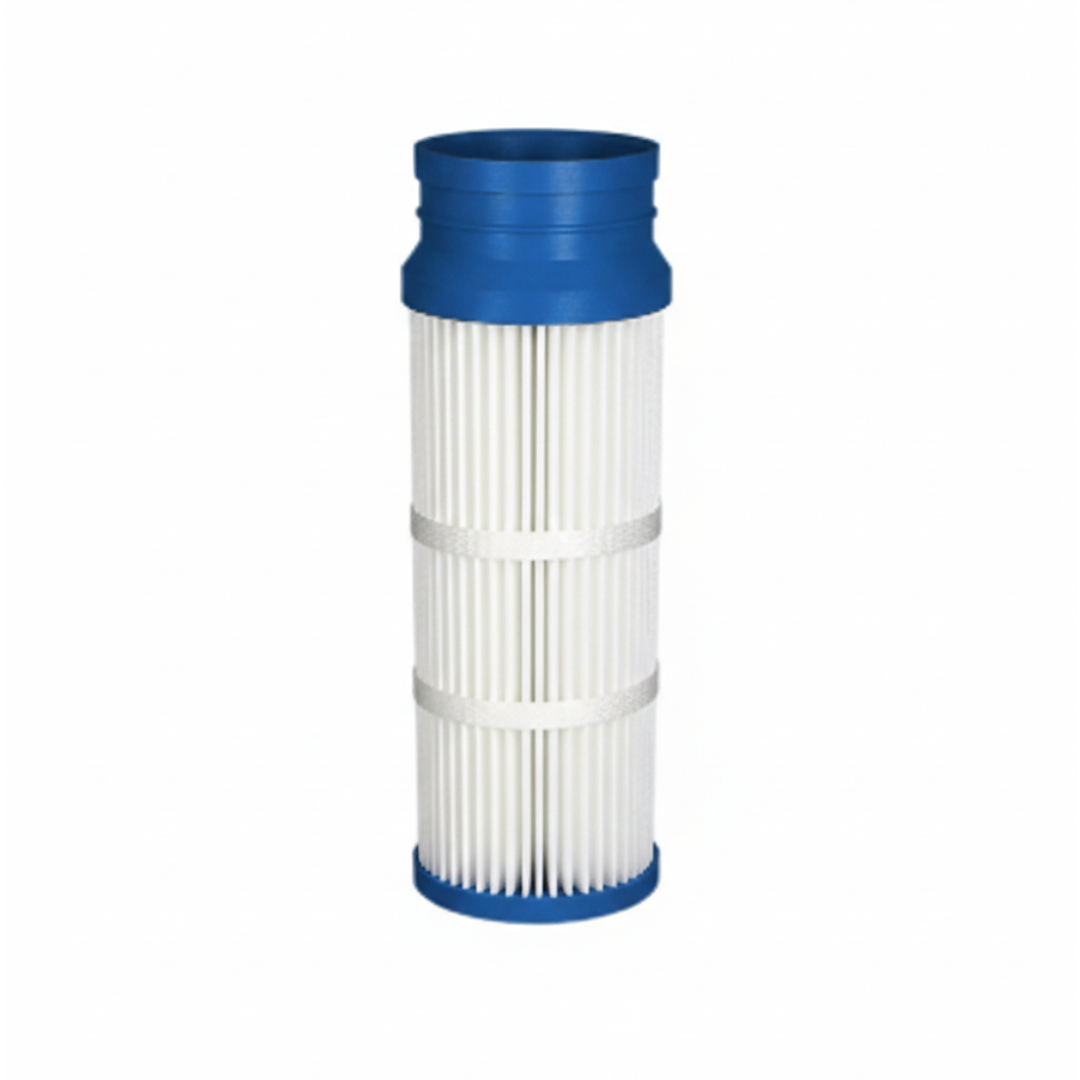

Pleated Dust Bag – 5-3/4 Inch X 29 Inch, Universal Bottom Load, Polyester Spunbond, 45 Pleats
Pleated dust filter elements are engineered to fit most common industry 5.75” diameter bottom bag removal dust collector styles with integral bag cups/hubs. Two internal ribs provide a positive seal to either the MAC AV hub (top rib) or Flex-Kleen style bag cup (lower rib.) After installation a worm gear clamp is applied to the respective top or bottom outer groove to complete the seal.
Features:
- 100% spun bond polyester filter media
- Molded FDA compliant urethane top and bottom
- 225° F (107° C) continuous operating temperature
- Open pleat spacing; shallow pleats
- Expanded metal galvanized core
- Strong and secure woven polyester outer bands
Specifications:
- 5-3/4″D X 29″L
- Universal Bottom Load
- Helix Inner Core, 2 Outer Bands
- Polyester Spunbond
- 45 Pleats
