Description

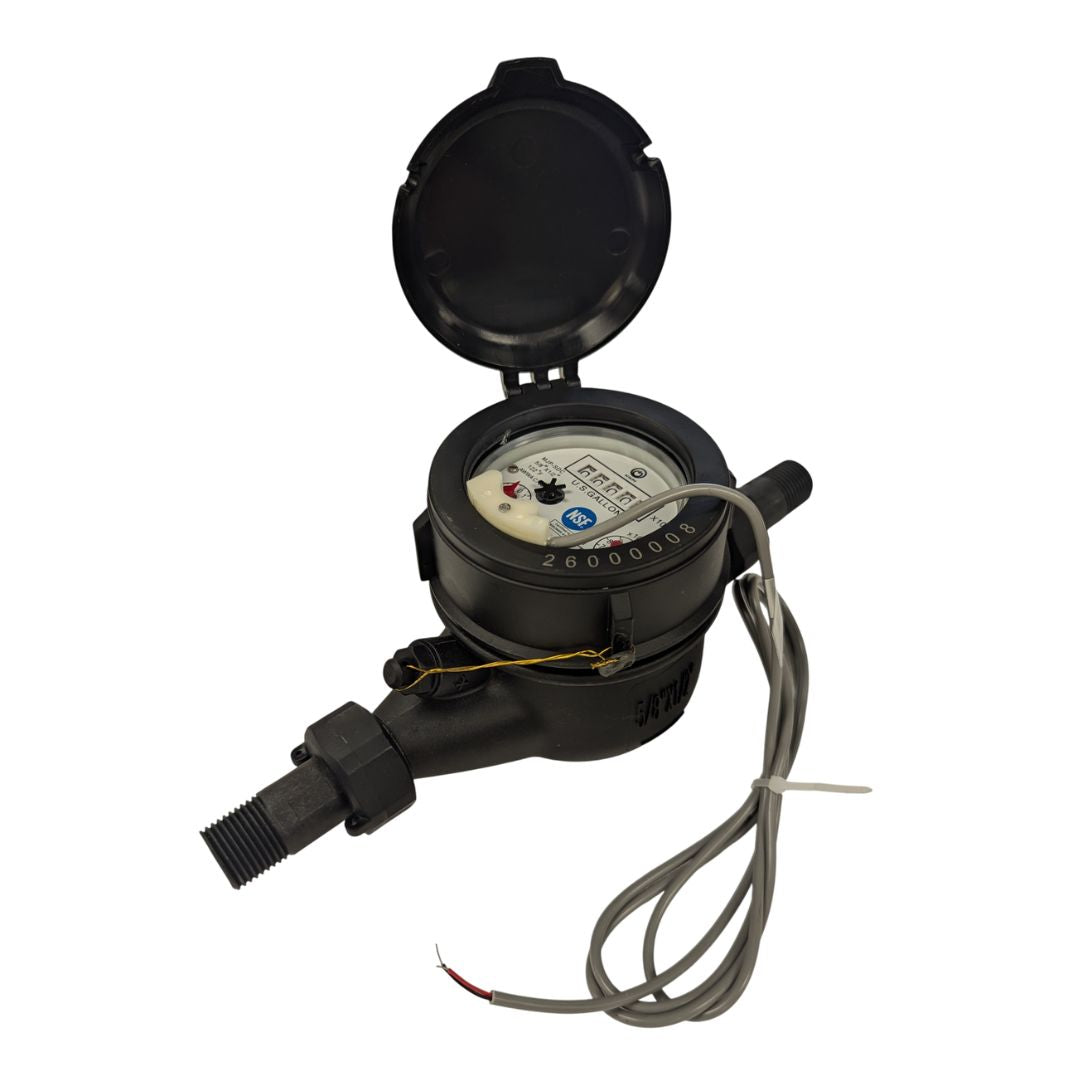

Multi-Jet Mechanical Water Totalizing Meters display total water usage in US Gallons with pulse output. Pulse is adjustable from .1 to 100 gallons per pulse.
Features:
- NSF-61 Certified
- Meets AWWA C708 standard
- Adjustable pulse rate – set to 1 gallon/pulse from the factory
- Corrosion resistant material
- Extra Inlet Filter
- 1.5 meter Pulse Output Cable
- Nylon body with couplings included
Technical Specifications:
| Type | Nylon Water Meter, 1/2″ NPT Couplings at both ends, Multi-Jet. |
| Mounting Orientation | Horizontal Inline mount with dial facing upward. |
| Unit | US Gallons / GPM |
| Accuracy | +/-1.5% within normal flow rate range as per AWWA Standard |
| Meter body | Nylon |
| Dimensions | 7.5″ length(with couplings 11.2 inches), 3.7″ wide, 4.23″ height. |
| Weight | 2 lbs. |
| Max. Reading | 9,999,999 |
| Max. working pressure | 150 psi |
| Max temperature | 122˚F |
| Maximum Flow Rate | 20 GPM |
| Maximum Continuous Flow Rate | 10 GPM |
| Minimum Flow Rate | 0.25 GPM |
| Normal Test Flow Limits | 1-20 GPM |
| Pulse Output (Magnet Position) | x0.01 – .1 Gallon/Pulse x0.1 – 1 Gallon/Pulse (Factory Setting) x1 – 10 Gallon/Pulse x10 – 100 Gallon/Pulse |
*Meters have been tested by QC inspectors in the production line to certify their quality, therefore the dial reading will not be zero.
Materials:
| Body | Nylon |
| Couplings | Nylon |
| Measuring Chamber | Polyethylene |
| Seals & O-Ring | EPDM |
