Description

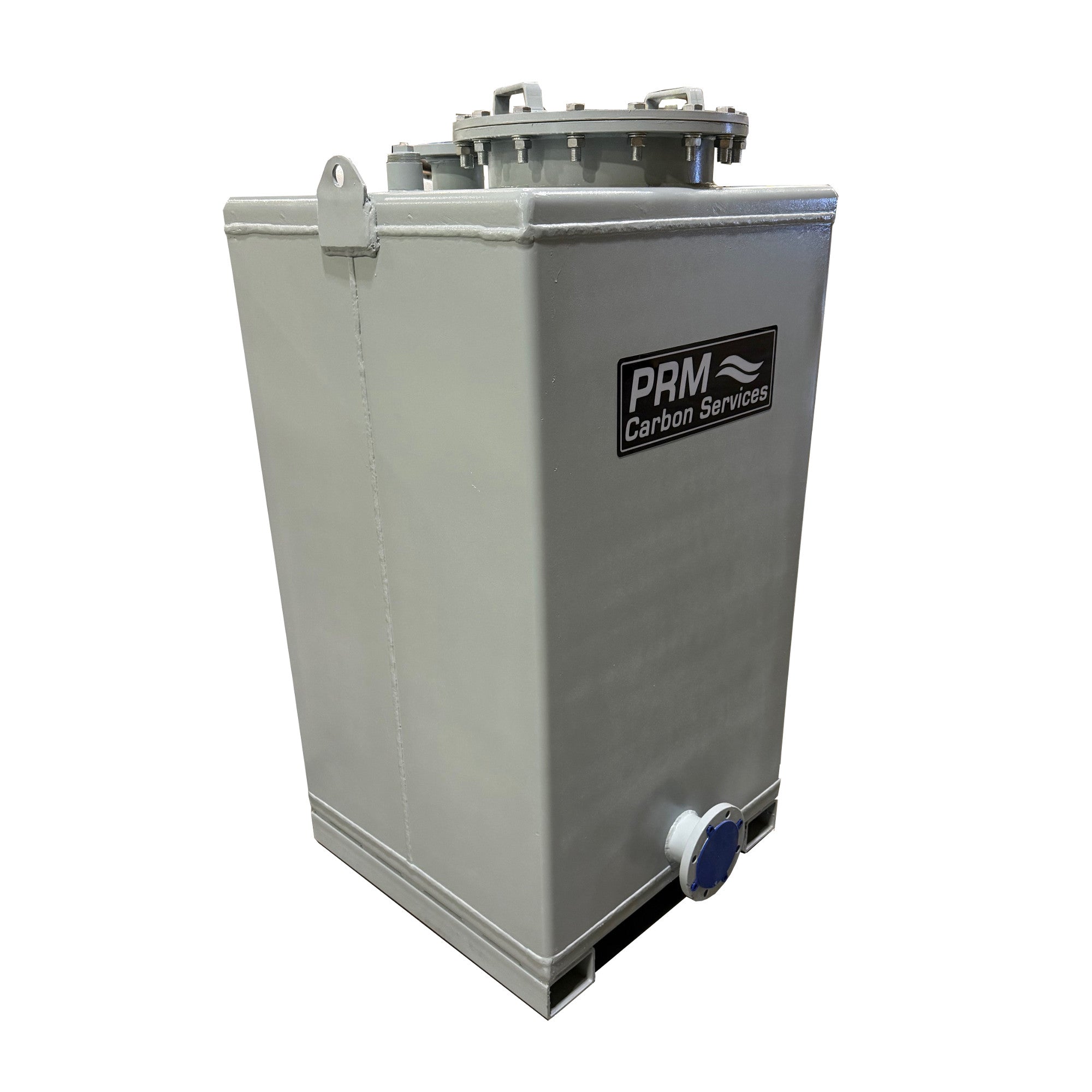

VP-500 Square Vapor Phase Carbon Vessel
PRM offers the VP Series Square Footprint Carbon Vessel which fit nicely into a trailer or enclosure without wasted space. These units include a false bottom and distributor screen to allow for more even distribution and lower pressure drops.
Features:
- Carbon Steel Construction, Epoxy Primer with Polyurethane Top Coat
- Square design allows for maximum space efficiency
- Maximum Pressure: 5 psig
- False bottom allows for even distribution, lower pressure drop, and no channeling
- Forklift Pockets for easy mobility
- 18″ Bolted top allows for easy carbon access and change-out
- 4” Flanged Inlet/Outlet
- Virgin or Reactivated Carbon for High Efficiency and Cost Effectiveness
Applications:
- SVE and AST vapor effluent remediation for VOC’s.
Standard Specifications:
- VP-500: 36”x 36″ Wide x 60” Tall
- 500 lbs 4mm Vapor Phase Carbon
- 100-500 scfm flow
- 4 Inch Inlet/Outlet
Resources:
- Datasheet
- MEDIAFILTKVP500X Drawing
PRM offers standardized, pre-engineered systems, or can customize a carbon system to specific project site requirements. PRM can also supply virgin and/or reactivated liquid phase or vapor phase Granular Activated Carbon for all of your environmental remediation projects. Ask about carbon change out service for existing systems.
