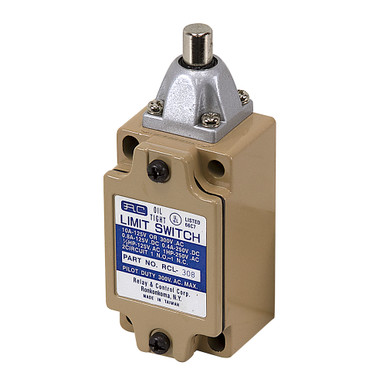

RCL-308 Limit Switch Top Push Rod Plunger – Relay & Control Corp

Description

PRECISION OIL TIGHT TOP PUSH ROD PLUNGER LIMIT SWITCH
Brand new, RELAY & CONTROLS CORP limit switch. Gasket on housing for dust proof, oil tight and water resistant sealing. Operating temperature range 5°F-175°F. Maximum operating frequency 30 operations per minute.

SPECIFICATIONS

• Model RCL-308
• Contact Type 1 Normally Open, 1 Normally Closed
• Contact Ratings:
  10 Amps @ 125 VAC
  1/2 HP @ 125 VAC, 1 HP @ 250 VAC
  300VAC max.
• Operating Force Max. 6 lbs.
• Release Force Min. 2 lbs.
• Pre-Travel Max.0.07″
• Over-Travel Min.0.2″
• Differential Travel Max.0.04″
• Operating Position 34±0.8mm
• TerminalsScrew
• Size1-5/8″ x 1-1/2″ x 4″ (housing only)
• Mount 4 holes 1-1/8″ x 2-3/8″
• Shpg.1 lbs.
